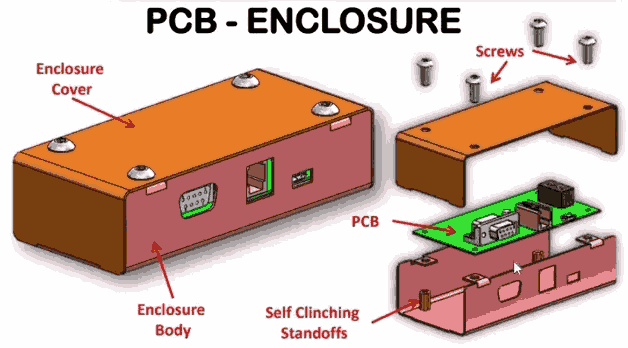

Custom Enclosure from PCB Data

"""
S-expression parser for KiCad .kicad_pcb files.
Converts nested parenthesized text into Python lists and strings.
"""

import re
from typing import Union

# Type alias for parsed S-expression tree
SExpr = Union[str, list]

def tokenize(text: str) -> list[str]:
    """
    Break S-expression text into tokens: '(', ')', quoted strings, and atoms.
    """
    token_pattern = r'''
        \(              |   # open paren
        \)              |   # close paren
        "[^"]*"         |   # quoted string (preserves spaces)
        [^\s()"]+           # unquoted atom (numbers, keywords)
    '''
    return re.findall(token_pattern, text, re.VERBOSE)

def parse_sexpr(text: str) -> SExpr:
    """
    Parse an S-expression string into nested Python lists.

    Example:
        '(footprint "USB_C" (at 82.55 24.13))'
        → ['footprint', 'USB_C', ['at', '82.55', '24.13']]
    """
    tokens = tokenize(text)
    pos = [0]  # mutable index for recursive descent

    def parse_one() -> SExpr:
        if pos[0] >= len(tokens):
            raise ValueError("Unexpected end of input")

        token = tokens[pos[0]]

        if token == '(':
            pos[0] += 1
            result = []
            while pos[0] < len(tokens) and tokens[pos[0]] != ')':
                result.append(parse_one())
            if pos[0] >= len(tokens):
                raise ValueError("Missing closing parenthesis")
            pos[0] += 1  # skip ')'
            return result
        elif token == ')':
            raise ValueError("Unexpected closing parenthesis")
        else:
            pos[0] += 1
            # Strip quotes from quoted strings
            if token.startswith('"') and token.endswith('"'):
                return token[1:-1]
            return token

    return parse_one()

"""
Extract board geometry from parsed KiCad S-expression tree.
Returns board outline, mounting holes, and connector positions.
"""

from dataclasses import dataclass, field

@dataclass
class Point2D:
    x: float
    y: float

@dataclass
class MountingHole:
    position: Point2D
    drill_diameter: float  # mm

@dataclass
class Connector:
    name: str
    position: Point2D
    rotation: float        # degrees
    width: float           # mm (extent along board edge)
    height: float          # mm (protrusion above PCB)
    depth: float           # mm (protrusion from board edge)
    connector_type: str    # "USB_C", "HDMI", "RJ45", "GPIO", etc.

@dataclass
class BoardData:
    outline_points: list[Point2D] = field(default_factory=list)
    width: float = 0.0
    height: float = 0.0
    mounting_holes: list[MountingHole] = field(default_factory=list)
    connectors: list[Connector] = field(default_factory=list)
    board_thickness: float = 1.6  # mm (standard FR4)

def find_elements(tree: list, tag: str) -> list[list]:
    """Recursively find all elements with a given tag."""
    results = []
    if isinstance(tree, list) and len(tree) > 0:
        if tree[0] == tag:
            results.append(tree)
        for item in tree[1:]:
            if isinstance(item, list):
                results.extend(find_elements(item, tag))
    return results

def get_attr(tree: list, tag: str) -> list | None:
    """Find a direct child element by tag."""
    for item in tree:
        if isinstance(item, list) and len(item) > 0 and item[0] == tag:
            return item
    return None

def extract_board_outline(tree: list) -> list[Point2D]:
    """
    Extract board outline from Edge.Cuts layer geometry.
    Returns ordered list of corner points.
    """
    points = set()

    # Find gr_line elements on Edge.Cuts
    for elem in tree:
        if not isinstance(elem, list):
            continue
        if elem[0] == 'gr_line':
            layer = get_attr(elem, 'layer')
            if layer and layer[1] == 'Edge.Cuts':
                start = get_attr(elem, 'start')
                end = get_attr(elem, 'end')
                if start and end:
                    points.add((float(start[1]), float(start[2])))
                    points.add((float(end[1]), float(end[2])))

    # Sort points to form a closed polygon (convex hull order)
    point_list = [Point2D(x, y) for x, y in sorted(points)]
    return point_list

def extract_mounting_holes(tree: list) -> list[MountingHole]:
    """Extract mounting hole positions and drill sizes from footprints."""
    holes = []

    for elem in tree:
        if not isinstance(elem, list) or elem[0] != 'footprint':
            continue

        footprint_name = elem[1] if len(elem) > 1 else ""
        if 'MountingHole' not in footprint_name:
            continue

        at = get_attr(elem, 'at')
        if not at:
            continue

        x, y = float(at[1]), float(at[2])

        # Find pad with drill size
        drill_dia = 2.7  # default M2.5 mounting hole
        for sub in elem:
            if isinstance(sub, list) and sub[0] == 'pad':
                drill = get_attr(sub, 'drill')
                if drill:
                    drill_dia = float(drill[1])

        holes.append(MountingHole(
            position=Point2D(x, y),
            drill_diameter=drill_dia
        ))

    return holes

def extract_connectors(tree: list) -> list[Connector]:
    """
    Extract connector positions and types from footprints.
    Identifies connector type from footprint library name.
    """
    connectors = []

    # Map footprint library prefixes to connector types and typical dimensions
    connector_map = {
        'USB_C':     {'type': 'USB_C',  'w': 9.0,  'h': 3.2, 'd': 7.5},
        'USB_Micro': {'type': 'USB_Micro', 'w': 8.0, 'h': 2.8, 'd': 6.0},
        'USB_A':     {'type': 'USB_A',  'w': 14.0, 'h': 7.0, 'd': 17.0},
        'HDMI_Micro':{'type': 'HDMI_Micro','w': 7.5,'h': 3.5, 'd': 8.0},
        'HDMI_A':    {'type': 'HDMI',   'w': 15.0, 'h': 6.0, 'd': 12.0},
        'RJ45':      {'type': 'RJ45',   'w': 16.0, 'h': 13.5,'d': 21.5},
        'PinHeader': {'type': 'GPIO',   'w': 50.8, 'h': 8.5, 'd': 2.54},
        'BarrelJack':{'type': 'Power',  'w': 9.0,  'h': 11.0,'d': 14.0},
        'Jack_DC':   {'type': 'Power',  'w': 9.0,  'h': 11.0,'d': 14.0},
    }

    for elem in tree:
        if not isinstance(elem, list) or elem[0] != 'footprint':
            continue

        fp_name = elem[1] if len(elem) > 1 else ""

        matched = None
        for prefix, dims in connector_map.items():
            if prefix in fp_name:
                matched = dims
                break

        if not matched:
            continue

        at = get_attr(elem, 'at')
        if not at:
            continue

        x, y = float(at[1]), float(at[2])
        rotation = float(at[3]) if len(at) > 3 else 0.0

        connectors.append(Connector(
            name=fp_name,
            position=Point2D(x, y),
            rotation=rotation,
            width=matched['w'],
            height=matched['h'],
            depth=matched['d'],
            connector_type=matched['type']
        ))

    return connectors

"""
Complete pipeline: read .kicad_pcb file → BoardData object.
"""

def parse_kicad_pcb(filepath: str) -> BoardData:
    """
    Parse a KiCad PCB file and return structured board data.

    Args:
        filepath: Path to .kicad_pcb file

    Returns:
        BoardData with outline, mounting holes, and connectors
    """
    with open(filepath, 'r') as f:
        text = f.read()

    tree = parse_sexpr(text)

    # Extract board outline
    outline = extract_board_outline(tree)

    # Calculate bounding box
    if outline:
        xs = [p.x for p in outline]
        ys = [p.y for p in outline]
        min_x, max_x = min(xs), max(xs)
        min_y, max_y = min(ys), max(ys)
        width = max_x - min_x
        height = max_y - min_y
    else:
        min_x = min_y = 0
        width = height = 0

    # Normalize coordinates to origin
    for p in outline:
        p.x -= min_x
        p.y -= min_y

    # Extract mounting holes (normalize coords)
    mounting_holes = extract_mounting_holes(tree)
    for mh in mounting_holes:
        mh.position.x -= min_x
        mh.position.y -= min_y

    # Extract connectors (normalize coords)
    connectors = extract_connectors(tree)
    for c in connectors:
        c.position.x -= min_x
        c.position.y -= min_y

    # Board thickness from general section
    board_thickness = 1.6
    general = get_attr(tree, 'general')
    if general:
        thick = get_attr(general, 'thickness')
        if thick:
            board_thickness = float(thick[1])

    return BoardData(
        outline_points=outline,
        width=width,
        height=height,
        mounting_holes=mounting_holes,
        connectors=connectors,
        board_thickness=board_thickness
    )

# --- Raspberry Pi 4 hardcoded data (for use without a .kicad_pcb file) ---

def raspberry_pi_4_data() -> BoardData:
    """
    Return BoardData for a Raspberry Pi 4 Model B.
    Dimensions from official mechanical drawing.
    Board: 85mm x 56mm, 1.4mm thick, mounting holes M2.7
    """
    return BoardData(
        outline_points=[
            Point2D(0, 0), Point2D(85, 0),
            Point2D(85, 56), Point2D(0, 56)
        ],
        width=85.0,
        height=56.0,
        mounting_holes=[
            MountingHole(Point2D(3.5, 3.5), 2.7),
            MountingHole(Point2D(61.5, 3.5), 2.7),
            MountingHole(Point2D(3.5, 52.5), 2.7),
            MountingHole(Point2D(61.5, 52.5), 2.7),
        ],
        connectors=[
            # USB-C power (bottom edge, near left)
            Connector("USB_C_Power", Point2D(11.2, 56.0), 0,
                      9.0, 3.2, 7.5, "USB_C"),
            # Micro HDMI 0 (bottom edge)
            Connector("HDMI_Micro_0", Point2D(26.0, 56.0), 0,
                      7.5, 3.5, 8.0, "HDMI_Micro"),
            # Micro HDMI 1 (bottom edge)
            Connector("HDMI_Micro_1", Point2D(39.5, 56.0), 0,
                      7.5, 3.5, 8.0, "HDMI_Micro"),
            # 3.5mm audio jack (bottom edge)
            Connector("AudioJack", Point2D(54.0, 56.0), 0,
                      7.0, 6.0, 12.0, "Audio"),
            # USB-A 2.0 (right edge, bottom pair)
            Connector("USB_A_2", Point2D(85.0, 29.0), 90,
                      14.0, 7.0, 17.0, "USB_A"),
            # USB-A 3.0 (right edge, top pair)
            Connector("USB_A_3", Point2D(85.0, 47.0), 90,
                      14.0, 7.0, 17.0, "USB_A"),
            # Ethernet RJ45 (right edge, top)
            Connector("RJ45", Point2D(85.0, 10.25), 90,
                      16.0, 13.5, 21.5, "RJ45"),
            # GPIO header (top edge)
            Connector("GPIO_40pin", Point2D(32.5, 3.5), 0,
                      51.0, 8.5, 2.54, "GPIO"),
        ],
        board_thickness=1.4
    )

"""
Generate the main enclosure shell — a hollow box with rounded corners.
"""

import cadquery as cq

def make_shell_body(board: BoardData, params: EnclosureParams) -> cq.Workplane:
    """
    Create the outer shell as a rounded box, then hollow it out.

    The shell is oriented with:
    - X along board width (85mm for RPi)
    - Y along board depth (56mm for RPi)
    - Z upward (bottom of enclosure at Z=0)
    """
    # Interior dimensions
    int_w = params.interior_width(board)
    int_d = params.interior_depth(board)
    int_h = params.interior_height

    # Exterior dimensions
    ext_w = int_w + 2 * params.wall_thickness
    ext_d = int_d + 2 * params.wall_thickness
    ext_h = int_h + params.bottom_thickness  # open top for now

    # Outer box with rounded vertical edges
    outer = (
        cq.Workplane("XY")
        .box(ext_w, ext_d, ext_h, centered=(True, True, False))
        .edges("|Z")  # select vertical edges
        .fillet(params.corner_radius)
    )

    # Inner cavity (cut from top)
    inner = (
        cq.Workplane("XY")
        .workplane(offset=params.bottom_thickness)
        .rect(int_w, int_d)
        .extrude(int_h + 1)  # +1 to ensure clean cut through top
    )

    # Apply corner radius to interior
    inner_radius = max(params.corner_radius - params.wall_thickness, 0.5)
    inner = inner.edges("|Z").fillet(inner_radius)

    shell = outer.cut(inner)

    return shell

def add_shell_lip(shell: cq.Workplane, board: BoardData,
                  params: EnclosureParams) -> cq.Workplane:
    """
    Add a stepped lip around the top of the shell for lid alignment.
    The lip is a thin ledge recessed inward by half the wall thickness.
    """
    int_w = params.interior_width(board)
    int_d = params.interior_depth(board)

    lip_width = params.wall_thickness / 2 - params.lid_tolerance
    lip_height = 2.0  # mm, how tall the lip step is

    # The lip sits at the top of the shell, inset from the outer wall
    lip_offset = params.bottom_thickness + params.interior_height - lip_height

    lip = (
        cq.Workplane("XY")
        .workplane(offset=lip_offset)
        .rect(int_w + lip_width * 2, int_d + lip_width * 2)
        .rect(int_w, int_d)  # inner cutout
        .extrude(lip_height)
    )

    shell = shell.union(lip)
    return shell

"""
Generate PCB standoff bosses at each mounting hole location.
Standoffs are cylindrical posts rising from the enclosure floor.
"""

import cadquery as cq
import math

def add_standoffs(shell: cq.Workplane, board: BoardData,
                  params: EnclosureParams) -> cq.Workplane:
    """
    Add cylindrical standoffs at each mounting hole position.

    Each standoff:
    - Rises from the enclosure floor to support the PCB
    - Has a center hole for M2.5 screw or heat-set insert
    - Includes a chamfer at the top for PCB alignment

    Coordinate mapping:
    - Board origin (0,0) maps to enclosure interior corner
    - Board coords offset by pcb_tolerance + wall_thickness from enclosure edge
    """
    int_w = params.interior_width(board)
    int_d = params.interior_depth(board)

    # Offset from enclosure center to board origin
    origin_x = -int_w / 2 + params.pcb_tolerance
    origin_y = -int_d / 2 + params.pcb_tolerance

    for hole in board.mounting_holes:
        # Map board coordinates to enclosure coordinates
        cx = origin_x + hole.position.x
        cy = origin_y + hole.position.y

        # Create standoff cylinder
        standoff = (
            cq.Workplane("XY")
            .workplane(offset=params.bottom_thickness)
            .center(cx, cy)
            .circle(params.standoff_outer_dia / 2)
            .extrude(params.pcb_clearance_below)
        )

        # Chamfer top edge for easier PCB placement
        standoff = (
            standoff.faces(">Z")
            .edges()
            .chamfer(params.standoff_chamfer)
        )

        # Center hole for screw
        screw_hole = (
            cq.Workplane("XY")
            .workplane(offset=params.bottom_thickness)
            .center(cx, cy)
            .circle(params.standoff_hole_dia / 2)
            .extrude(params.pcb_clearance_below)
        )

        shell = shell.union(standoff).cut(screw_hole)

    return shell

def add_corner_gussets(shell: cq.Workplane, board: BoardData,
                       params: EnclosureParams) -> cq.Workplane:
    """
    Add triangular gussets at the base of each standoff for strength.
    These connect the standoff to the nearest wall for rigidity.
    """
    int_w = params.interior_width(board)
    int_d = params.interior_depth(board)
    origin_x = -int_w / 2 + params.pcb_tolerance
    origin_y = -int_d / 2 + params.pcb_tolerance

    gusset_size = params.standoff_outer_dia  # triangular base length
    gusset_thickness = 1.5  # mm

    for hole in board.mounting_holes:
        cx = origin_x + hole.position.x
        cy = origin_y + hole.position.y

        # Determine which corner this hole is nearest to
        # and add a small triangular rib connecting standoff to wall
        near_x_wall = -int_w / 2 if cx < 0 else int_w / 2
        near_y_wall = -int_d / 2 if cy < 0 else int_d / 2

        # X-direction gusset (connects standoff to nearest X wall)
        dir_x = 1 if near_x_wall > cx else -1
        gusset_x = (
            cq.Workplane("XZ")
            .workplane(offset=cy)
            .center(cx, params.bottom_thickness)
            .lineTo(cx + dir_x * gusset_size, params.bottom_thickness)
            .lineTo(cx, params.bottom_thickness + params.pcb_clearance_below)
            .close()
            .extrude(gusset_thickness / 2, both=True)
        )

        shell = shell.union(gusset_x)

    return shell

"""
Cut port openings in the enclosure walls for connectors.
Each cutout is positioned based on the connector's board coordinates
and sized with clearance tolerance.
"""

import cadquery as cq

def add_port_cutouts(shell: cq.Workplane, board: BoardData,
                     params: EnclosureParams) -> cq.Workplane:
    """
    Cut rectangular openings for each connector that sits on a board edge.

    The cutout is positioned:
    - Horizontally: centered on the connector's X/Y position on the board
    - Vertically: from the PCB bottom surface to connector height + tolerance
    - Depth: through the enclosure wall + extra for clean cut

    Connector rotation determines which wall gets the cutout:
    - 0°   → bottom wall (positive Y face of enclosure)
    - 90°  → right wall (positive X face)
    - 180° → top wall (negative Y face)
    - 270° → left wall (negative X face)
    """
    int_w = params.interior_width(board)
    int_d = params.interior_depth(board)
    origin_x = -int_w / 2 + params.pcb_tolerance
    origin_y = -int_d / 2 + params.pcb_tolerance

    tol = params.connector_tolerance

    # PCB sits at this Z height inside the enclosure
    pcb_z = params.bottom_thickness + params.pcb_clearance_below

    for conn in board.connectors:
        # Cutout dimensions with tolerance
        cut_w = conn.width + 2 * tol
        cut_h = conn.height + 2 * tol

        # Z position: bottom of connector to top, relative to enclosure floor
        cut_z_bottom = pcb_z - tol  # slightly below PCB surface
        cut_z_center = cut_z_bottom + cut_h / 2

        cx = origin_x + conn.position.x
        cy = origin_y + conn.position.y

        # Determine which wall to cut based on connector position
        # (connectors on board edges face outward)
        wall_cut_depth = params.wall_thickness + 2  # extra for clean boolean

        if conn.position.y >= board.height - 1:
            # Connector on bottom edge → cut in +Y wall
            cutout = (
                cq.Workplane("XZ")
                .workplane(offset=int_d / 2 + params.wall_thickness / 2)
                .center(cx, cut_z_center)
                .rect(cut_w, cut_h)
                .extrude(wall_cut_depth, both=True)
            )
        elif conn.position.y <= 1:
            # Connector on top edge → cut in -Y wall
            cutout = (
                cq.Workplane("XZ")
                .workplane(offset=-int_d / 2 - params.wall_thickness / 2)
                .center(cx, cut_z_center)
                .rect(cut_w, cut_h)
                .extrude(wall_cut_depth, both=True)
            )
        elif conn.position.x >= board.width - 1:
            # Connector on right edge → cut in +X wall
            cutout = (
                cq.Workplane("YZ")
                .workplane(offset=int_w / 2 + params.wall_thickness / 2)
                .center(cy, cut_z_center)
                .rect(cut_w, cut_h)
                .extrude(wall_cut_depth, both=True)
            )
        elif conn.position.x <= 1:
            # Connector on left edge → cut in -X wall
            cutout = (
                cq.Workplane("YZ")
                .workplane(offset=-int_w / 2 - params.wall_thickness / 2)
                .center(cy, cut_z_center)
                .rect(cut_w, cut_h)
                .extrude(wall_cut_depth, both=True)
            )
        else:
            # Connector not on an edge — skip (internal component)
            continue

        shell = shell.cut(cutout)

        # Add chamfer around cutout for plug alignment (0.5mm)
        # This helps guide connectors into the opening

    return shell

def add_gpio_slot(shell: cq.Workplane, board: BoardData,
                  params: EnclosureParams) -> cq.Workplane:
    """
    Special handling for GPIO header: cut a slot in the lid area
    rather than a wall cutout, since GPIO pins face upward.
    This function cuts a slot in the top portion of the shell
    (or is handled separately in the lid).
    """
    int_w = params.interior_width(board)
    int_d = params.interior_depth(board)
    origin_x = -int_w / 2 + params.pcb_tolerance
    origin_y = -int_d / 2 + params.pcb_tolerance

    for conn in board.connectors:
        if conn.connector_type != "GPIO":
            continue

        # GPIO slot is cut from the lid (handled in lid generation)
        # Mark position for later use
        pass

    return shell

"""
Add ventilation patterns to enclosure walls and/or bottom.
Two patterns supported: linear slot arrays and hexagonal grids.
"""

import cadquery as cq
import math

def add_ventilation_slots(shell: cq.Workplane, board: BoardData,
                          params: EnclosureParams,
                          face: str = "bottom") -> cq.Workplane:
    """
    Cut a rectangular array of ventilation slots.

    Args:
        shell: Current enclosure body
        board: Board data for sizing
        params: Enclosure parameters
        face: "bottom", "left", "right", "front", "back"
    """
    slot_w = params.vent_slot_width
    slot_l = params.vent_slot_length
    spacing = params.vent_slot_spacing
    margin = params.vent_margin

    int_w = params.interior_width(board)
    int_d = params.interior_depth(board)

    if face == "bottom":
        # Slots on the bottom face (Z=0 plane)
        # Available area for vents
        avail_x = int_w - 2 * margin
        avail_y = int_d - 2 * margin

        # Number of slot rows and columns
        n_cols = int(avail_x / (slot_l + spacing))
        n_rows = int(avail_y / (slot_w + spacing))

        # Center the pattern
        pattern_w = n_cols * slot_l + (n_cols - 1) * spacing
        pattern_h = n_rows * slot_w + (n_rows - 1) * spacing
        start_x = -pattern_w / 2
        start_y = -pattern_h / 2

        for row in range(n_rows):
            for col in range(n_cols):
                cx = start_x + col * (slot_l + spacing) + slot_l / 2
                cy = start_y + row * (slot_w + spacing) + slot_w / 2

                slot = (
                    cq.Workplane("XY")
                    .center(cx, cy)
                    .rect(slot_l, slot_w)
                    .extrude(params.bottom_thickness + 1)
                )

                # Round the slot ends
                slot = slot.edges("|Z").fillet(slot_w / 2 - 0.01)

                shell = shell.cut(slot)

    elif face in ("left", "right"):
        # Ventilation on side walls
        sign = 1 if face == "right" else -1
        wall_x = sign * (int_w / 2 + params.wall_thickness / 2)

        avail_y = int_d - 2 * margin
        avail_z = params.interior_height - 2 * margin

        pcb_z = params.bottom_thickness + params.pcb_clearance_below

        n_rows = int(avail_z / (slot_w + spacing))
        n_cols = int(avail_y / (slot_l + spacing))

        pattern_y = n_cols * slot_l + (n_cols - 1) * spacing
        start_y = -pattern_y / 2

        for row in range(n_rows):
            z_center = (pcb_z + params.pcb_clearance_above / 2 +
                        (row - n_rows / 2) * (slot_w + spacing))
            for col in range(n_cols):
                cy = start_y + col * (slot_l + spacing) + slot_l / 2

                slot = (
                    cq.Workplane("YZ")
                    .workplane(offset=wall_x)
                    .center(cy, z_center)
                    .rect(slot_l, slot_w)
                    .extrude(params.wall_thickness + 1, both=True)
                )

                shell = shell.cut(slot)

    return shell

def add_hex_ventilation(shell: cq.Workplane, board: BoardData,
                        params: EnclosureParams,
                        hex_radius: float = 3.0,
                        hex_spacing: float = 1.5) -> cq.Workplane:
    """
    Cut a hexagonal grid pattern on the bottom face.
    More aesthetically pleasing and structurally efficient than slots.

    Args:
        hex_radius: Radius of each hexagonal hole (mm)
        hex_spacing: Wall thickness between hexagons (mm)
    """
    int_w = params.interior_width(board)
    int_d = params.interior_depth(board)
    margin = params.vent_margin

    avail_x = int_w - 2 * margin
    avail_y = int_d - 2 * margin

    # Hex grid spacing
    dx = (hex_radius * 2 + hex_spacing) * math.cos(math.radians(30))
    dy = hex_radius * 2 + hex_spacing

    n_cols = int(avail_x / dx)
    n_rows = int(avail_y / dy)

    start_x = -(n_cols - 1) * dx / 2
    start_y = -(n_rows - 1) * dy / 2

    for row in range(n_rows):
        for col in range(n_cols):
            cx = start_x + col * dx
            # Offset every other row for hex packing
            cy = start_y + row * dy + (col % 2) * dy / 2

            if abs(cx) > avail_x / 2 or abs(cy) > avail_y / 2:
                continue

            # Create hexagonal hole
            hex_hole = (
                cq.Workplane("XY")
                .center(cx, cy)
                .polygon(6, hex_radius * 2)
                .extrude(params.bottom_thickness + 1)
            )

            shell = shell.cut(hex_hole)

    return shell

"""
Snap-fit hooks for tool-free lid attachment.
Uses cantilever snap-fit design with calculated deflection.
"""

import cadquery as cq
import math

def calculate_snap_fit(params: EnclosureParams,
                       material: str = "PLA") -> dict:
    """
    Calculate snap-fit geometry from material properties.

    Cantilever beam deflection: delta = (P * L^3) / (3 * E * I)
    Maximum strain: epsilon = (3 * delta * t) / (2 * L^2)

    For PLA: E ≈ 3500 MPa, allowable strain ≈ 2%
    For PETG: E ≈ 2100 MPa, allowable strain ≈ 3%
    """
    properties = {
        "PLA":  {"E": 3500, "max_strain": 0.02},
        "PETG": {"E": 2100, "max_strain": 0.03},
        "ABS":  {"E": 2300, "max_strain": 0.03},
    }

    prop = properties.get(material, properties["PLA"])

    # Snap hook thickness (beam thickness)
    t = 1.0  # mm

    # Required deflection = snap depth
    delta = params.snap_depth

    # Minimum beam length to stay within allowable strain
    # epsilon = (3 * delta * t) / (2 * L^2)
    # L = sqrt((3 * delta * t) / (2 * epsilon_max))
    L_min = math.sqrt((3 * delta * t) / (2 * prop["max_strain"]))

    # Use at least 1.5× minimum length for safety factor
    L = max(L_min * 1.5, 8.0)

    return {
        "beam_length": L,
        "beam_thickness": t,
        "hook_depth": params.snap_depth,
        "hook_height": params.snap_height,
        "beam_width": params.snap_width,
        "material": material,
        "E_modulus": prop["E"],
        "max_strain": prop["max_strain"],
        "min_length": L_min,
    }

def add_snap_hooks(shell: cq.Workplane, board: BoardData,
                   params: EnclosureParams) -> cq.Workplane:
    """
    Add snap-fit hooks on the interior wall near the top of the shell.
    Hooks are placed on the long sides (front and back walls).

    Each hook is a cantilever beam with a 45° catch at the end.
    """
    snap = calculate_snap_fit(params)
    int_w = params.interior_width(board)
    int_d = params.interior_depth(board)

    L = snap["beam_length"]
    t = snap["beam_thickness"]
    w = snap["beam_width"]
    hook_d = snap["hook_depth"]
    hook_h = snap["hook_height"]

    # Hook Z position: near top of shell
    shell_top = params.bottom_thickness + params.interior_height
    hook_z_start = shell_top - L

    # Place hooks on front and back walls (Y walls), centered
    for y_sign in [1, -1]:
        wall_y = y_sign * int_d / 2

        # Cantilever beam on interior wall face
        beam = (
            cq.Workplane("XZ")
            .workplane(offset=wall_y - y_sign * t / 2)
            .center(0, hook_z_start + L / 2)
            .rect(w, L)
            .extrude(t * y_sign * -1)  # into the interior
        )

        # Hook catch at the bottom of the cantilever
        # 45° ramp + vertical catch face
        hook_pts = [
            (0, 0),
            (hook_d, 0),
            (hook_d, hook_h),
            (0, hook_h + hook_d),  # 45° ramp
        ]

        hook = (
            cq.Workplane("XZ")
            .workplane(offset=wall_y - y_sign * (t + hook_d / 2))
            .center(-w / 2, hook_z_start)
            .polyline(hook_pts).close()
            .extrude(w)
        )

        shell = shell.union(beam).union(hook)

    return shell

def add_snap_catches(lid: cq.Workplane, board: BoardData,
                     params: EnclosureParams) -> cq.Workplane:
    """
    Add matching snap catch slots on the lid edges.
    These are recesses that the shell hooks engage into.
    """
    snap = calculate_snap_fit(params)
    int_w = params.interior_width(board)
    int_d = params.interior_depth(board)

    w = snap["beam_width"]
    hook_h = snap["hook_height"]
    hook_d = snap["hook_depth"]

    for y_sign in [1, -1]:
        wall_y = y_sign * int_d / 2

        # Cut a slot in the lid edge for the hook to engage
        catch_slot = (
            cq.Workplane("XZ")
            .workplane(offset=wall_y)
            .center(0, -hook_h / 2)
            .rect(w + 0.6, hook_h + 0.3)
            .extrude(hook_d + 1, both=True)
        )

        lid = lid.cut(catch_slot)

    return lid
