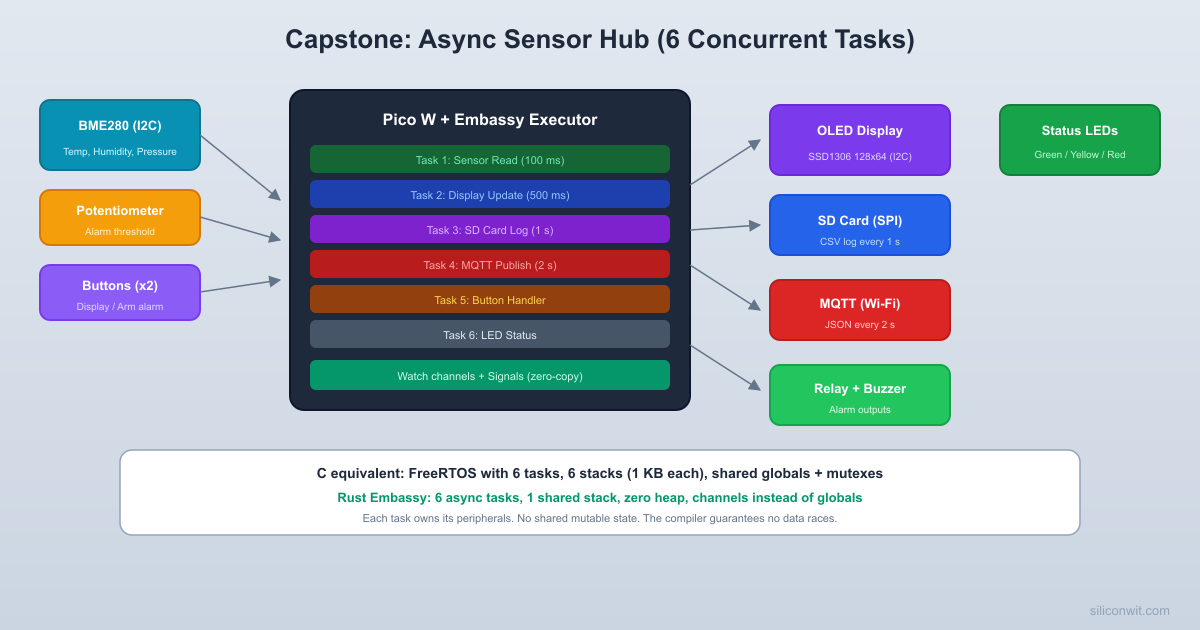

Capstone: Async Sensor Hub

[package]
name = "sensor-hub"
version = "0.1.0"
edition = "2021"

[dependencies]
embassy-executor = { version = "0.7", features = ["arch-cortex-m", "executor-thread"] }
embassy-rp = { version = "0.3", features = ["time-driver", "rp2040"] }
embassy-net = { version = "0.6", features = ["tcp", "dhcpv4", "medium-ethernet"] }
embassy-time = { version = "0.4" }
embassy-futures = { version = "0.1" }
embassy-sync = { version = "0.6" }

cyw43 = { version = "0.4" }
cyw43-pio = { version = "0.4", features = ["overclock"] }
cyw43-firmware = { version = "0.4" }

embedded-sdmmc = { version = "0.8" }
ssd1306 = { version = "0.9" }
embedded-graphics = { version = "0.8" }
embedded-hal-async = { version = "1" }

defmt = "0.3"
defmt-rtt = "0.4"
panic-probe = { version = "0.3", features = ["print-defmt"] }

cortex-m = "0.7"
cortex-m-rt = "0.7"

static_cell = "2"
portable-atomic = { version = "1", features = ["critical-section"] }

[profile.release]
debug = 2
lto = true
opt-level = "s"

fn main() {
    println!("cargo:rustc-link-arg-bins=--nmagic");
    println!("cargo:rustc-link-arg-bins=-Tlink.x");
    println!("cargo:rustc-link-arg-bins=-Tdefmt.x");
}

MEMORY {
    BOOT2 : ORIGIN = 0x10000000, LENGTH = 0x100
    FLASH : ORIGIN = 0x10000100, LENGTH = 2048K - 0x100
    RAM   : ORIGIN = 0x20000000, LENGTH = 256K
}

[target.thumbv6m-none-eabi]
runner = "probe-rs run --chip RP2040 --protocol swd"

[build]
target = "thumbv6m-none-eabi"

[env]
DEFMT_LOG = "debug"

/// Sensor reading from the BME280.
#[derive(Clone, Copy, Debug, defmt::Format)]
struct SensorData {
    /// Temperature in centidegrees (2345 = 23.45 C)
    temperature_c: i32,
    /// Humidity in centi-percent (5678 = 56.78%)
    humidity_pct: u32,
    /// Pressure in Pascals
    pressure_pa: u32,
    /// Monotonic reading number (wraps at u32::MAX)
    sequence: u32,
}

/// Display mode, cycled by button A.
#[derive(Clone, Copy, Debug, defmt::Format, PartialEq)]
enum DisplayMode {
    Temperature,
    Humidity,
    Pressure,
    All,
}

impl DisplayMode {
    fn next(self) -> Self {
        match self {
            Self::Temperature => Self::Humidity,
            Self::Humidity => Self::Pressure,
            Self::Pressure => Self::All,
            Self::All => Self::Temperature,
        }
    }

    fn label(self) -> &'static str {
        match self {
            Self::Temperature => "Temperature",
            Self::Humidity => "Humidity",
            Self::Pressure => "Pressure",
            Self::All => "All Sensors",
        }
    }
}

/// System status flags for the LED task.
#[derive(Clone, Copy)]
struct SystemStatus {
    wifi_connected: bool,
    mqtt_connected: bool,
    sd_card_ok: bool,
    sensor_ok: bool,
}

#![no_std]
#![no_main]

use defmt::*;
use defmt_rtt as _;
use panic_probe as _;

use embassy_executor::Spawner;
use embassy_rp::bind_interrupts;
use embassy_rp::gpio::{Input, Level, Output, Pull};
use embassy_rp::i2c::{Async, I2c, Config as I2cConfig, InterruptHandler as I2cIrq};
use embassy_rp::peripherals::{DMA_CH0, DMA_CH1, I2C0, I2C1, PIO0, SPI1};
use embassy_rp::pio::{InterruptHandler as PioIrq, Pio};
use embassy_rp::spi::{Config as SpiConfig, Phase, Polarity, Spi};
use embassy_net::tcp::TcpSocket;
use embassy_net::{Config as NetConfig, StackResources};
use embassy_sync::blocking_mutex::raw::CriticalSectionRawMutex;
use embassy_sync::signal::Signal;
use embassy_sync::watch::Watch;
use embassy_time::{Duration, Timer};

use cyw43_pio::PioSpi;
use static_cell::StaticCell;

bind_interrupts!(struct Irqs {
    PIO0_IRQ_0 => PioIrq<PIO0>;
    I2C0_IRQ => I2cIrq<I2C0>;
    I2C1_IRQ => I2cIrq<I2C1>;
});

// ── Configuration ──────────────────────────────────────────────────

const WIFI_SSID: &str = "YourNetworkName";
const WIFI_PASS: &str = "YourNetworkPassword";
const MQTT_BROKER_IP: [u8; 4] = [192, 168, 1, 100];
const MQTT_PORT: u16 = 1883;
const MQTT_CLIENT_ID: &str = "pico-w-sensor-hub";
const MQTT_TOPIC: &str = "sensors/hub/bme280";

// ── Shared Data Types ──────────────────────────────────────────────

#[derive(Clone, Copy, Debug, defmt::Format)]
struct SensorData {
    temperature_c: i32,
    humidity_pct: u32,
    pressure_pa: u32,
    sequence: u32,
}

impl Default for SensorData {
    fn default() -> Self {
        Self {
            temperature_c: 0,
            humidity_pct: 0,
            pressure_pa: 0,
            sequence: 0,
        }
    }
}

#[derive(Clone, Copy, Debug, defmt::Format, PartialEq)]
enum DisplayMode {
    Temperature,
    Humidity,
    Pressure,
    All,
}

impl DisplayMode {
    fn next(self) -> Self {
        match self {
            Self::Temperature => Self::Humidity,
            Self::Humidity => Self::Pressure,
            Self::Pressure => Self::All,
            Self::All => Self::Temperature,
        }
    }
}

#[derive(Clone, Copy)]
struct SystemStatus {
    wifi_connected: bool,
    mqtt_connected: bool,
    sd_card_ok: bool,
    sensor_ok: bool,
}

impl Default for SystemStatus {
    fn default() -> Self {
        Self {
            wifi_connected: false,
            mqtt_connected: false,
            sd_card_ok: false,
            sensor_ok: false,
        }
    }
}

// ── Inter-Task Communication ───────────────────────────────────────

static SENSOR_DATA: Watch<CriticalSectionRawMutex, SensorData, 2> = Watch::new();
static SYSTEM_STATUS: Watch<CriticalSectionRawMutex, SystemStatus, 2> = Watch::new();
static BUTTON_A_SIGNAL: Signal<CriticalSectionRawMutex, ()> = Signal::new();
static BUTTON_B_SIGNAL: Signal<CriticalSectionRawMutex, ()> = Signal::new();

// ── BME280 Constants and Types ─────────────────────────────────────

const BME280_ADDR: u8 = 0x76;

struct Bme280Calibration {
    dig_t1: u16, dig_t2: i16, dig_t3: i16,
    dig_p1: u16, dig_p2: i16, dig_p3: i16, dig_p4: i16,
    dig_p5: i16, dig_p6: i16, dig_p7: i16, dig_p8: i16, dig_p9: i16,
    dig_h1: u8, dig_h2: i16, dig_h3: u8, dig_h4: i16, dig_h5: i16, dig_h6: i8,
}

// ── Task 1: Sensor Read (100 ms) ──────────────────────────────────

#[embassy_executor::task]
async fn sensor_task(mut i2c: I2c<'static, I2C0, Async>) {
    info!("Sensor task started");

    // Initialize BME280
    let cal = match bme280_init(&mut i2c).await {
        Ok(c) => {
            info!("BME280 initialized successfully");
            let sender = SYSTEM_STATUS.sender();
            sender.send(SystemStatus {
                sensor_ok: true,
                ..SystemStatus::default()
            });
            c
        }
        Err(_) => {
            error!("BME280 initialization failed");
            // Signal sensor failure and halt this task
            loop { Timer::after(Duration::from_secs(60)).await; }
        }
    };

    let sender = SENSOR_DATA.sender();
    let mut sequence: u32 = 0;

    loop {
        match bme280_read(&mut i2c, &cal).await {
            Ok(reading) => {
                let data = SensorData {
                    temperature_c: reading.0,
                    humidity_pct: reading.1,
                    pressure_pa: reading.2,
                    sequence,
                };
                sender.send(data);
                sequence = sequence.wrapping_add(1);
            }
            Err(_) => {
                warn!("BME280 read error at sequence {}", sequence);
            }
        }

        Timer::after(Duration::from_millis(100)).await;
    }
}

// ── Task 2: Display Update (500 ms) ───────────────────────────────

#[embassy_executor::task]
async fn display_task(i2c: I2c<'static, I2C1, Async>) {
    info!("Display task started");

    // Initialize SSD1306 OLED
    use ssd1306::prelude::*;
    use ssd1306::mode::BufferedGraphicsMode;
    use ssd1306::I2CDisplayInterface;
    use ssd1306::Ssd1306;
    use ssd1306::size::DisplaySize128x64;
    use ssd1306::rotation::DisplayRotation;
    use embedded_graphics::prelude::*;
    use embedded_graphics::mono_font::{ascii::FONT_6X10, MonoTextStyleBuilder};
    use embedded_graphics::text::Text;
    use embedded_graphics::pixelcolor::BinaryColor;

    let interface = I2CDisplayInterface::new(i2c);
    let mut display = Ssd1306::new(interface, DisplaySize128x64, DisplayRotation::Rotate0)
        .into_buffered_graphics_mode();

    if display.init().is_err() {
        error!("SSD1306 initialization failed");
        loop { Timer::after(Duration::from_secs(60)).await; }
    }

    let text_style = MonoTextStyleBuilder::new()
        .font(&FONT_6X10)
        .text_color(BinaryColor::On)
        .build();

    let mut receiver = SENSOR_DATA.receiver().unwrap();
    let mut mode = DisplayMode::All;
    let mut text_buf = [0u8; 32];

    loop {
        // Check for mode change from button A
        if BUTTON_A_SIGNAL.signaled() {
            BUTTON_A_SIGNAL.reset();
            mode = mode.next();
            info!("Display mode: {:?}", mode);
        }

        // Get latest sensor data
        let data = receiver.get().await;

        // Clear display
        display.clear_buffer();

        // Draw header
        let _ = Text::new("Sensor Hub", Point::new(0, 10), text_style)
            .draw(&mut display);

        match mode {
            DisplayMode::Temperature => {
                let len = format_display_line(
                    &mut text_buf, b"Temp: ",
                    data.temperature_c, b" C", true,
                );
                let _ = Text::new(
                    unsafe { core::str::from_utf8_unchecked(&text_buf[..len]) },
                    Point::new(0, 30),
                    text_style,
                ).draw(&mut display);
            }
            DisplayMode::Humidity => {
                let len = format_display_line(
                    &mut text_buf, b"Hum:  ",
                    data.humidity_pct as i32, b" %", true,
                );
                let _ = Text::new(
                    unsafe { core::str::from_utf8_unchecked(&text_buf[..len]) },
                    Point::new(0, 30),
                    text_style,
                ).draw(&mut display);
            }
            DisplayMode::Pressure => {
                let len = format_display_line(
                    &mut text_buf, b"Press: ",
                    data.pressure_pa as i32, b" Pa", false,
                );
                let _ = Text::new(
                    unsafe { core::str::from_utf8_unchecked(&text_buf[..len]) },
                    Point::new(0, 30),
                    text_style,
                ).draw(&mut display);
            }
            DisplayMode::All => {
                let len1 = format_display_line(
                    &mut text_buf, b"T: ",
                    data.temperature_c, b" C", true,
                );
                let _ = Text::new(
                    unsafe { core::str::from_utf8_unchecked(&text_buf[..len1]) },
                    Point::new(0, 25),
                    text_style,
                ).draw(&mut display);

                let len2 = format_display_line(
                    &mut text_buf, b"H: ",
                    data.humidity_pct as i32, b" %", true,
                );
                let _ = Text::new(
                    unsafe { core::str::from_utf8_unchecked(&text_buf[..len2]) },
                    Point::new(0, 38),
                    text_style,
                ).draw(&mut display);

                let len3 = format_display_line(
                    &mut text_buf, b"P: ",
                    data.pressure_pa as i32, b" Pa", false,
                );
                let _ = Text::new(
                    unsafe { core::str::from_utf8_unchecked(&text_buf[..len3]) },
                    Point::new(0, 51),
                    text_style,
                ).draw(&mut display);
            }
        }

        // Draw sequence number at bottom
        let seq_len = format_seq_line(&mut text_buf, data.sequence);
        let _ = Text::new(
            unsafe { core::str::from_utf8_unchecked(&text_buf[..seq_len]) },
            Point::new(0, 62),
            text_style,
        ).draw(&mut display);

        let _ = display.flush();

        Timer::after(Duration::from_millis(500)).await;
    }
}

// ── Task 3: SD Card Logging (1 s) ─────────────────────────────────

#[embassy_executor::task]
async fn sd_card_task(
    spi: Spi<'static, SPI1, Async>,
    cs: Output<'static>,
    mut activity_led: Output<'static>,
) {
    info!("SD card task started");

    use embedded_sdmmc::{SdCard, VolumeManager, Mode, VolumeIdx};

    let sd_card = SdCard::new(spi, cs, embassy_time::Delay);

    // Wait for card to be ready
    Timer::after(Duration::from_millis(500)).await;

    let mut volume_mgr = match sd_card.num_bytes() {
        Ok(size) => {
            info!("SD card detected: {} bytes", size);
            VolumeManager::new(sd_card, DummyTimesource)
        }
        Err(_) => {
            warn!("SD card not detected, logging disabled");
            loop { Timer::after(Duration::from_secs(60)).await; }
        }
    };

    // Open volume and root directory
    let volume = match volume_mgr.open_volume(VolumeIdx(0)) {
        Ok(v) => v,
        Err(_) => {
            warn!("Failed to open SD card volume");
            loop { Timer::after(Duration::from_secs(60)).await; }
        }
    };

    let root_dir = match volume_mgr.open_root_dir(volume) {
        Ok(d) => d,
        Err(_) => {
            warn!("Failed to open root directory");
            loop { Timer::after(Duration::from_secs(60)).await; }
        }
    };

    // Open or create the log file
    let file = match volume_mgr.open_file_in_dir(
        root_dir, "SENSOR.CSV", Mode::ReadWriteCreateOrAppend,
    ) {
        Ok(f) => {
            info!("Opened SENSOR.CSV for logging");
            f
        }
        Err(_) => {
            warn!("Failed to open log file");
            loop { Timer::after(Duration::from_secs(60)).await; }
        }
    };

    // Write CSV header if file is empty
    let file_length = volume_mgr.file_length(file).unwrap_or(0);
    if file_length == 0 {
        let header = b"sequence,temperature_c,humidity_pct,pressure_pa\n";
        let _ = volume_mgr.write(file, header);
    }

    let mut receiver = SENSOR_DATA.receiver().unwrap();
    let mut csv_buf = [0u8; 64];

    loop {
        let data = receiver.get().await;

        // Format CSV line
        let len = format_csv_line(&mut csv_buf, &data);

        // Blink activity LED
        activity_led.set_high();

        match volume_mgr.write(file, &csv_buf[..len]) {
            Ok(_) => {
                // Flush periodically (every write for reliability)
                let _ = volume_mgr.flush_file(file);
            }
            Err(_) => {
                warn!("SD card write failed at sequence {}", data.sequence);
            }
        }

        activity_led.set_low();

        Timer::after(Duration::from_secs(1)).await;
    }
}

// ── Task 4: MQTT Publish (2 s) ────────────────────────────────────

#[embassy_executor::task]
async fn mqtt_task(stack: embassy_net::Stack<'static>) {
    info!("MQTT task started, waiting for network...");

    // Wait for the network stack to be ready
    loop {
        if stack.config_v4().is_some() {
            break;
        }
        Timer::after(Duration::from_millis(500)).await;
    }

    let broker_addr = embassy_net::Ipv4Address::new(
        MQTT_BROKER_IP[0], MQTT_BROKER_IP[1],
        MQTT_BROKER_IP[2], MQTT_BROKER_IP[3],
    );

    let mut receiver = SENSOR_DATA.receiver().unwrap();
    let mut json_buf = [0u8; 256];
    let mut backoff_secs: u64 = 1;

    loop {
        // Create TCP socket
        let mut rx_buf = [0u8; 1024];
        let mut tx_buf = [0u8; 1024];
        let mut socket = TcpSocket::new(stack, &mut rx_buf, &mut tx_buf);
        socket.set_timeout(Some(Duration::from_secs(10)));

        // Connect to MQTT broker
        info!("MQTT: connecting to broker...");
        if let Err(e) = socket.connect((broker_addr, MQTT_PORT)).await {
            warn!("MQTT: TCP connect failed: {:?}", e);
            update_mqtt_status(false);
            Timer::after(Duration::from_secs(backoff_secs)).await;
            backoff_secs = (backoff_secs * 2).min(30);
            continue;
        }

        // Send MQTT CONNECT packet
        if let Err(_) = mqtt_connect(&mut socket, MQTT_CLIENT_ID).await {
            warn!("MQTT: CONNECT failed");
            update_mqtt_status(false);
            Timer::after(Duration::from_secs(backoff_secs)).await;
            backoff_secs = (backoff_secs * 2).min(30);
            continue;
        }

        info!("MQTT: connected to broker");
        update_mqtt_status(true);
        backoff_secs = 1;

        let mut ping_counter: u32 = 0;

        // Publish loop
        loop {
            // Check for manual publish trigger from button B
            let manual_trigger = BUTTON_B_SIGNAL.signaled();
            if manual_trigger {
                BUTTON_B_SIGNAL.reset();
                info!("MQTT: manual publish triggered");
            }

            let data = receiver.get().await;

            let json_len = format_json(
                &mut json_buf,
                data.temperature_c,
                data.humidity_pct,
                data.pressure_pa,
                data.sequence,
            );

            if let Err(_) = mqtt_publish(&mut socket, MQTT_TOPIC, &json_buf[..json_len]).await {
                warn!("MQTT: publish failed, reconnecting...");
                update_mqtt_status(false);
                break;
            }

            info!(
                "MQTT: published seq={} T={}.{} H={}.{} P={}",
                data.sequence,
                data.temperature_c / 100,
                (data.temperature_c % 100).unsigned_abs(),
                data.humidity_pct / 100,
                data.humidity_pct % 100,
                data.pressure_pa,
            );

            // MQTT keep-alive every 5 publishes
            ping_counter += 1;
            if ping_counter >= 5 {
                ping_counter = 0;
                if let Err(_) = mqtt_ping(&mut socket).await {
                    warn!("MQTT: ping failed, reconnecting...");
                    update_mqtt_status(false);
                    break;
                }
            }

            if !manual_trigger {
                Timer::after(Duration::from_secs(2)).await;
            }
        }

        Timer::after(Duration::from_secs(backoff_secs)).await;
        backoff_secs = (backoff_secs * 2).min(30);
    }
}

fn update_mqtt_status(connected: bool) {
    let sender = SYSTEM_STATUS.sender();
    sender.send(SystemStatus {
        wifi_connected: true,
        mqtt_connected: connected,
        sd_card_ok: true,
        sensor_ok: true,
    });
}

// ── Task 5: Button Handler ─────────────────────────────────────────

#[embassy_executor::task]
async fn button_task(mut btn_a: Input<'static>, mut btn_b: Input<'static>) {
    info!("Button task started");

    loop {
        // Wait for either button to be pressed (falling edge)
        let press = embassy_futures::select::select(
            btn_a.wait_for_falling_edge(),
            btn_b.wait_for_falling_edge(),
        ).await;

        match press {
            embassy_futures::select::Either::First(_) => {
                info!("Button A pressed: cycling display mode");
                BUTTON_A_SIGNAL.signal(());
                // Debounce
                Timer::after(Duration::from_millis(200)).await;
            }
            embassy_futures::select::Either::Second(_) => {
                info!("Button B pressed: manual MQTT publish");
                BUTTON_B_SIGNAL.signal(());
                // Debounce
                Timer::after(Duration::from_millis(200)).await;
            }
        }
    }
}

// ── Task 6: LED Status ─────────────────────────────────────────────

#[embassy_executor::task]
async fn led_task(mut wifi_led: Output<'static>) {
    info!("LED task started");

    let mut receiver = SYSTEM_STATUS.receiver().unwrap();
    let mut blink_state = false;

    loop {
        // Default: check if we have a status update
        if let Some(status) = receiver.try_get() {
            if status.mqtt_connected {
                // Solid on: everything connected
                wifi_led.set_high();
            } else if status.wifi_connected {
                // Slow blink: Wi-Fi OK but MQTT disconnected
                blink_state = !blink_state;
                if blink_state { wifi_led.set_high(); } else { wifi_led.set_low(); }
            } else {
                // Fast blink: no Wi-Fi
                blink_state = !blink_state;
                if blink_state { wifi_led.set_high(); } else { wifi_led.set_low(); }
            }
        }

        Timer::after(Duration::from_millis(250)).await;
    }
}

// ── CYW43 and Network Background Tasks ─────────────────────────────

#[embassy_executor::task]
async fn cyw43_task(
    runner: cyw43::Runner<'static, Output<'static>, PioSpi<'static, PIO0, 0, DMA_CH0>>,
) -> ! {
    runner.run().await
}

#[embassy_executor::task]
async fn net_task(mut runner: embassy_net::Runner<'static, cyw43::NetDriver<'static>>) -> ! {
    runner.run().await
}

// ── Main Entry Point ───────────────────────────────────────────────

#[embassy_executor::main]
async fn main(spawner: Spawner) {
    let p = embassy_rp::init(Default::default());

    // ── CYW43 Wi-Fi Initialization ─────────────────────────────────

    let fw = cyw43_firmware::firmware();
    let clm = cyw43_firmware::clm();

    let pwr = Output::new(p.PIN_23, Level::Low);
    let cs = Output::new(p.PIN_25, Level::High);

    let mut pio = Pio::new(p.PIO0, Irqs);
    let spi_wifi = PioSpi::new(
        &mut pio.common,
        pio.sm0,
        pio.irq0,
        cs,
        p.PIN_24,
        p.PIN_29,
        p.DMA_CH0,
    );

    static CYW43_STATE: StaticCell<cyw43::State> = StaticCell::new();
    let cyw43_state = CYW43_STATE.init(cyw43::State::new());

    let (net_device, mut control, cyw43_runner) =
        cyw43::new(cyw43_state, pwr, spi_wifi, fw).await;
    spawner.spawn(cyw43_task(cyw43_runner)).unwrap();

    control.init(clm).await;
    control.set_power_management(cyw43::PowerManagement::PowerSave).await;

    // ── Network Stack ──────────────────────────────────────────────

    let net_config = NetConfig::dhcpv4(Default::default());

    static RESOURCES: StaticCell<StackResources<5>> = StaticCell::new();
    let resources = RESOURCES.init(StackResources::new());

    let (stack, net_runner) = embassy_net::new(
        net_device, net_config, resources, embassy_rp::clocks::RoscRng,
    );
    spawner.spawn(net_task(net_runner)).unwrap();

    // ── Connect to Wi-Fi ───────────────────────────────────────────

    info!("Connecting to Wi-Fi: {}", WIFI_SSID);
    loop {
        match control.join_wpa2(WIFI_SSID, WIFI_PASS).await {
            Ok(_) => {
                info!("Wi-Fi connected");
                break;
            }
            Err(e) => {
                warn!("Wi-Fi join failed: status={}", e.status);
                Timer::after(Duration::from_secs(2)).await;
            }
        }
    }

    // Wait for DHCP
    info!("Waiting for DHCP...");
    loop {
        if let Some(config) = stack.config_v4() {
            info!("IP address: {}", config.address);
            break;
        }
        Timer::after(Duration::from_millis(500)).await;
    }

    // Update system status: Wi-Fi connected
    SYSTEM_STATUS.sender().send(SystemStatus {
        wifi_connected: true,
        mqtt_connected: false,
        sd_card_ok: false,
        sensor_ok: false,
    });

    // Blink onboard LED to confirm Wi-Fi
    for _ in 0..3 {
        control.gpio_set(0, true).await;
        Timer::after(Duration::from_millis(200)).await;
        control.gpio_set(0, false).await;
        Timer::after(Duration::from_millis(200)).await;
    }

    // ── Initialize Peripherals ─────────────────────────────────────

    // I2C0 for BME280 sensor
    let i2c0 = I2c::new_async(p.I2C0, p.PIN_5, p.PIN_4, Irqs, I2cConfig::default());

    // I2C1 for SSD1306 display
    let i2c1 = I2c::new_async(p.I2C1, p.PIN_7, p.PIN_6, Irqs, I2cConfig::default());

    // SPI1 for SD card
    let mut spi_config = SpiConfig::default();
    spi_config.frequency = 400_000; // Start slow for SD init
    spi_config.phase = Phase::CaptureOnFirstTransition;
    spi_config.polarity = Polarity::IdleLow;

    let spi_sd = Spi::new(
        p.SPI1, p.PIN_10, p.PIN_11, p.PIN_12,
        p.DMA_CH1, p.DMA_CH2, spi_config,
    );
    let sd_cs = Output::new(p.PIN_13, Level::High);

    // GPIOs
    let wifi_led = Output::new(p.PIN_16, Level::Low);
    let sd_led = Output::new(p.PIN_17, Level::Low);
    let btn_a = Input::new(p.PIN_18, Pull::Up);
    let btn_b = Input::new(p.PIN_19, Pull::Up);

    // ── Spawn All Tasks ────────────────────────────────────────────

    spawner.spawn(sensor_task(i2c0)).unwrap();
    spawner.spawn(display_task(i2c1)).unwrap();
    spawner.spawn(sd_card_task(spi_sd, sd_cs, sd_led)).unwrap();
    spawner.spawn(mqtt_task(stack)).unwrap();
    spawner.spawn(button_task(btn_a, btn_b)).unwrap();
    spawner.spawn(led_task(wifi_led)).unwrap();

    info!("All tasks spawned. Sensor hub is running.");

    // Main task idles; all work happens in spawned tasks
    loop {
        Timer::after(Duration::from_secs(3600)).await;
    }
}

// ── MQTT Protocol Functions ────────────────────────────────────────

async fn mqtt_connect(socket: &mut TcpSocket<'_>, client_id: &str) -> Result<(), ()> {
    let id = client_id.as_bytes();
    let remaining = 10 + 2 + id.len();

    let mut pkt = [0u8; 128];
    let mut pos = 0;

    pkt[pos] = 0x10; pos += 1; // CONNECT
    pkt[pos] = remaining as u8; pos += 1;

    // Protocol name "MQTT"
    pkt[pos] = 0x00; pos += 1;
    pkt[pos] = 0x04; pos += 1;
    pkt[pos..pos + 4].copy_from_slice(b"MQTT"); pos += 4;

    pkt[pos] = 0x04; pos += 1; // Protocol level 4 (MQTT 3.1.1)
    pkt[pos] = 0x02; pos += 1; // Clean session
    pkt[pos] = 0x00; pos += 1; // Keep alive MSB
    pkt[pos] = 0x3C; pos += 1; // Keep alive LSB (60s)

    // Client ID
    pkt[pos] = (id.len() >> 8) as u8; pos += 1;
    pkt[pos] = (id.len() & 0xFF) as u8; pos += 1;
    pkt[pos..pos + id.len()].copy_from_slice(id); pos += id.len();

    socket.write_all(&pkt[..pos]).await.map_err(|_| ())?;

    let mut connack = [0u8; 4];
    socket.read_exact(&mut connack).await.map_err(|_| ())?;

    if connack[0] != 0x20 || connack[3] != 0x00 {
        return Err(());
    }
    Ok(())
}

async fn mqtt_publish(socket: &mut TcpSocket<'_>, topic: &str, payload: &[u8]) -> Result<(), ()> {
    let topic_bytes = topic.as_bytes();
    let remaining = 2 + topic_bytes.len() + payload.len();

    let mut pkt = [0u8; 512];
    let mut pos = 0;

    pkt[pos] = 0x30; pos += 1; // PUBLISH QoS 0

    // Variable-length remaining length
    let mut rem = remaining;
    loop {
        let mut byte = (rem % 128) as u8;
        rem /= 128;
        if rem > 0 { byte |= 0x80; }
        pkt[pos] = byte; pos += 1;
        if rem == 0 { break; }
    }

    // Topic
    pkt[pos] = (topic_bytes.len() >> 8) as u8; pos += 1;
    pkt[pos] = (topic_bytes.len() & 0xFF) as u8; pos += 1;
    pkt[pos..pos + topic_bytes.len()].copy_from_slice(topic_bytes);
    pos += topic_bytes.len();

    // Payload
    pkt[pos..pos + payload.len()].copy_from_slice(payload);
    pos += payload.len();

    socket.write_all(&pkt[..pos]).await.map_err(|_| ())
}

async fn mqtt_ping(socket: &mut TcpSocket<'_>) -> Result<(), ()> {
    socket.write_all(&[0xC0, 0x00]).await.map_err(|_| ())?;
    let mut resp = [0u8; 2];
    socket.read_exact(&mut resp).await.map_err(|_| ())?;
    if resp[0] != 0xD0 { return Err(()); }
    Ok(())
}

// ── BME280 Driver ──────────────────────────────────────────────────

async fn bme280_init(i2c: &mut I2c<'_, I2C0, Async>) -> Result<Bme280Calibration, ()> {
    let mut id = [0u8; 1];
    i2c.write_read(BME280_ADDR, &[0xD0], &mut id).await.map_err(|_| ())?;
    if id[0] != 0x60 { return Err(()); }

    // Soft reset
    i2c.write(BME280_ADDR, &[0xE0, 0xB6]).await.map_err(|_| ())?;
    Timer::after(Duration::from_millis(10)).await;

    // Read temperature and pressure calibration
    let mut cal_buf = [0u8; 26];
    i2c.write_read(BME280_ADDR, &[0x88], &mut cal_buf).await.map_err(|_| ())?;

    // Read humidity calibration
    let mut cal_h = [0u8; 7];
    i2c.write_read(BME280_ADDR, &[0xE1], &mut cal_h).await.map_err(|_| ())?;
    let mut dig_h1 = [0u8; 1];
    i2c.write_read(BME280_ADDR, &[0xA1], &mut dig_h1).await.map_err(|_| ())?;

    let cal = Bme280Calibration {
        dig_t1: u16::from_le_bytes([cal_buf[0], cal_buf[1]]),
        dig_t2: i16::from_le_bytes([cal_buf[2], cal_buf[3]]),
        dig_t3: i16::from_le_bytes([cal_buf[4], cal_buf[5]]),
        dig_p1: u16::from_le_bytes([cal_buf[6], cal_buf[7]]),
        dig_p2: i16::from_le_bytes([cal_buf[8], cal_buf[9]]),
        dig_p3: i16::from_le_bytes([cal_buf[10], cal_buf[11]]),
        dig_p4: i16::from_le_bytes([cal_buf[12], cal_buf[13]]),
        dig_p5: i16::from_le_bytes([cal_buf[14], cal_buf[15]]),
        dig_p6: i16::from_le_bytes([cal_buf[16], cal_buf[17]]),
        dig_p7: i16::from_le_bytes([cal_buf[18], cal_buf[19]]),
        dig_p8: i16::from_le_bytes([cal_buf[20], cal_buf[21]]),
        dig_p9: i16::from_le_bytes([cal_buf[22], cal_buf[23]]),
        dig_h1: dig_h1[0],
        dig_h2: i16::from_le_bytes([cal_h[0], cal_h[1]]),
        dig_h3: cal_h[2],
        dig_h4: ((cal_h[3] as i16) << 4) | ((cal_h[4] as i16) & 0x0F),
        dig_h5: ((cal_h[5] as i16) << 4) | (((cal_h[4] as i16) >> 4) & 0x0F),
        dig_h6: cal_h[6] as i8,
    };

    // Configure sensor: humidity x1, temp x1, pressure x1, normal mode
    i2c.write(BME280_ADDR, &[0xF2, 0x01]).await.map_err(|_| ())?;
    i2c.write(BME280_ADDR, &[0xF4, 0x27]).await.map_err(|_| ())?;
    i2c.write(BME280_ADDR, &[0xF5, 0xA0]).await.map_err(|_| ())?;

    Ok(cal)
}

/// Returns (temperature_c, humidity_pct, pressure_pa)
async fn bme280_read(
    i2c: &mut I2c<'_, I2C0, Async>,
    cal: &Bme280Calibration,
) -> Result<(i32, u32, u32), ()> {
    let mut raw = [0u8; 8];
    i2c.write_read(BME280_ADDR, &[0xF7], &mut raw).await.map_err(|_| ())?;

    let adc_p = ((raw[0] as i32) << 12) | ((raw[1] as i32) << 4) | ((raw[2] as i32) >> 4);
    let adc_t = ((raw[3] as i32) << 12) | ((raw[4] as i32) << 4) | ((raw[5] as i32) >> 4);
    let adc_h = ((raw[6] as i32) << 8) | (raw[7] as i32);

    // Temperature compensation
    let var1 = ((((adc_t >> 3) - ((cal.dig_t1 as i32) << 1))) * (cal.dig_t2 as i32)) >> 11;
    let var2 = (((((adc_t >> 4) - (cal.dig_t1 as i32))
        * ((adc_t >> 4) - (cal.dig_t1 as i32))) >> 12)
        * (cal.dig_t3 as i32)) >> 14;
    let t_fine = var1 + var2;
    let temperature = (t_fine * 5 + 128) >> 8;

    // Pressure compensation
    let mut var1_p = (t_fine as i64) - 128000;
    let mut var2_p = var1_p * var1_p * (cal.dig_p6 as i64);
    var2_p = var2_p + ((var1_p * (cal.dig_p5 as i64)) << 17);
    var2_p = var2_p + ((cal.dig_p4 as i64) << 35);
    var1_p = ((var1_p * var1_p * (cal.dig_p3 as i64)) >> 8)
        + ((var1_p * (cal.dig_p2 as i64)) << 12);
    var1_p = (((1i64 << 47) + var1_p) * (cal.dig_p1 as i64)) >> 33;

    let pressure = if var1_p == 0 {
        0u32
    } else {
        let mut p: i64 = 1048576 - adc_p as i64;
        p = (((p << 31) - var2_p) * 3125) / var1_p;
        let v1 = ((cal.dig_p9 as i64) * (p >> 13) * (p >> 13)) >> 25;
        let v2 = ((cal.dig_p8 as i64) * p) >> 19;
        ((p + v1 + v2) >> 8) as u32 + (((cal.dig_p7 as i64) << 4) as u32)
    };

    // Humidity compensation
    let mut v_x1 = t_fine - 76800i32;
    v_x1 = (((((adc_h << 14) - ((cal.dig_h4 as i32) << 20)
        - ((cal.dig_h5 as i32) * v_x1)) + 16384) >> 15)
        * (((((((v_x1 * (cal.dig_h6 as i32)) >> 10)
            * (((v_x1 * (cal.dig_h3 as i32)) >> 11) + 32768)) >> 10)
            + 2097152) * (cal.dig_h2 as i32) + 8192) >> 14));
    v_x1 = v_x1 - (((((v_x1 >> 15) * (v_x1 >> 15)) >> 7) * (cal.dig_h1 as i32)) >> 4);
    let v_x1 = if v_x1 < 0 { 0 } else if v_x1 > 419430400 { 419430400 } else { v_x1 };
    let humidity = (v_x1 >> 12) as u32;

    Ok((
        temperature,                    // centidegrees
        (humidity * 100) / 1024,        // centi-percent
        pressure / 256,                 // Pascals
    ))
}

// ── Formatting Helpers ─────────────────────────────────────────────

fn format_json(buf: &mut [u8], temp: i32, hum: u32, press: u32, seq: u32) -> usize {
    let mut pos = 0;

    let h = b"{\"seq\":";
    buf[pos..pos + h.len()].copy_from_slice(h); pos += h.len();
    pos += write_u32_str(&mut buf[pos..], seq);

    let h2 = b",\"temperature\":";
    buf[pos..pos + h2.len()].copy_from_slice(h2); pos += h2.len();
    pos += write_fixed(&mut buf[pos..], temp);

    let h3 = b",\"humidity\":";
    buf[pos..pos + h3.len()].copy_from_slice(h3); pos += h3.len();
    pos += write_fixed(&mut buf[pos..], hum as i32);

    let h4 = b",\"pressure\":";
    buf[pos..pos + h4.len()].copy_from_slice(h4); pos += h4.len();
    pos += write_u32_str(&mut buf[pos..], press);

    buf[pos] = b'}'; pos += 1;
    pos
}

fn format_csv_line(buf: &mut [u8], data: &SensorData) -> usize {
    let mut pos = 0;
    pos += write_u32_str(&mut buf[pos..], data.sequence);
    buf[pos] = b','; pos += 1;
    pos += write_fixed(&mut buf[pos..], data.temperature_c);
    buf[pos] = b','; pos += 1;
    pos += write_fixed(&mut buf[pos..], data.humidity_pct as i32);
    buf[pos] = b','; pos += 1;
    pos += write_u32_str(&mut buf[pos..], data.pressure_pa);
    buf[pos] = b'\n'; pos += 1;
    pos
}

fn format_display_line(buf: &mut [u8], prefix: &[u8], val: i32, suffix: &[u8], fixed: bool) -> usize {
    let mut pos = 0;
    buf[pos..pos + prefix.len()].copy_from_slice(prefix);
    pos += prefix.len();
    if fixed {
        pos += write_fixed(&mut buf[pos..], val);
    } else {
        pos += write_u32_str(&mut buf[pos..], val as u32);
    }
    buf[pos..pos + suffix.len()].copy_from_slice(suffix);
    pos += suffix.len();
    pos
}

fn format_seq_line(buf: &mut [u8], seq: u32) -> usize {
    let mut pos = 0;
    let prefix = b"#";
    buf[pos..pos + prefix.len()].copy_from_slice(prefix);
    pos += prefix.len();
    pos += write_u32_str(&mut buf[pos..], seq);
    pos
}

fn write_fixed(buf: &mut [u8], val: i32) -> usize {
    let mut pos = 0;
    if val < 0 { buf[pos] = b'-'; pos += 1; }
    let abs = val.unsigned_abs();
    pos += write_u32_str(&mut buf[pos..], abs / 100);
    buf[pos] = b'.'; pos += 1;
    let frac = abs % 100;
    if frac < 10 { buf[pos] = b'0'; pos += 1; }
    pos += write_u32_str(&mut buf[pos..], frac);
    pos
}

fn write_u32_str(buf: &mut [u8], val: u32) -> usize {
    if val == 0 { buf[0] = b'0'; return 1; }
    let mut tmp = [0u8; 10];
    let mut n = val;
    let mut i = 0;
    while n > 0 { tmp[i] = b'0' + (n % 10) as u8; n /= 10; i += 1; }
    for j in 0..i { buf[j] = tmp[i - 1 - j]; }
    i
}

// ── SD Card Time Source ────────────────────────────────────────────

struct DummyTimesource;

impl embedded_sdmmc::TimeSource for DummyTimesource {
    fn get_timestamp(&self) -> embedded_sdmmc::Timestamp {
        embedded_sdmmc::Timestamp {
            year_since_1970: 56, // 2026
            zero_indexed_month: 2, // March
            zero_indexed_day: 11, // 12th
            hours: 0,
            minutes: 0,
            seconds: 0,
        }
    }
}
