Accelerometer Gesture Recognition

  Data Collection to Deployment
  ──────────────────────────────────────────
  1. Collect (MicroPython on Pico)
     shake: 50 samples x 6 axes x 100 Hz
     tilt:  50 samples
     tap:   50 samples
     circle: 50 samples
        │
  2. Train (TensorFlow on PC)
     Dense NN: 600 ► 64 ► 32 ► 4
     Accuracy: ~95% on test set
        │
  3. Quantize + Convert
     float32 (32 KB) ──► int8 (8 KB)
        │
  4. Deploy to Pico (C SDK) AND STM32 (HAL)
     Same .tflite, different platform code

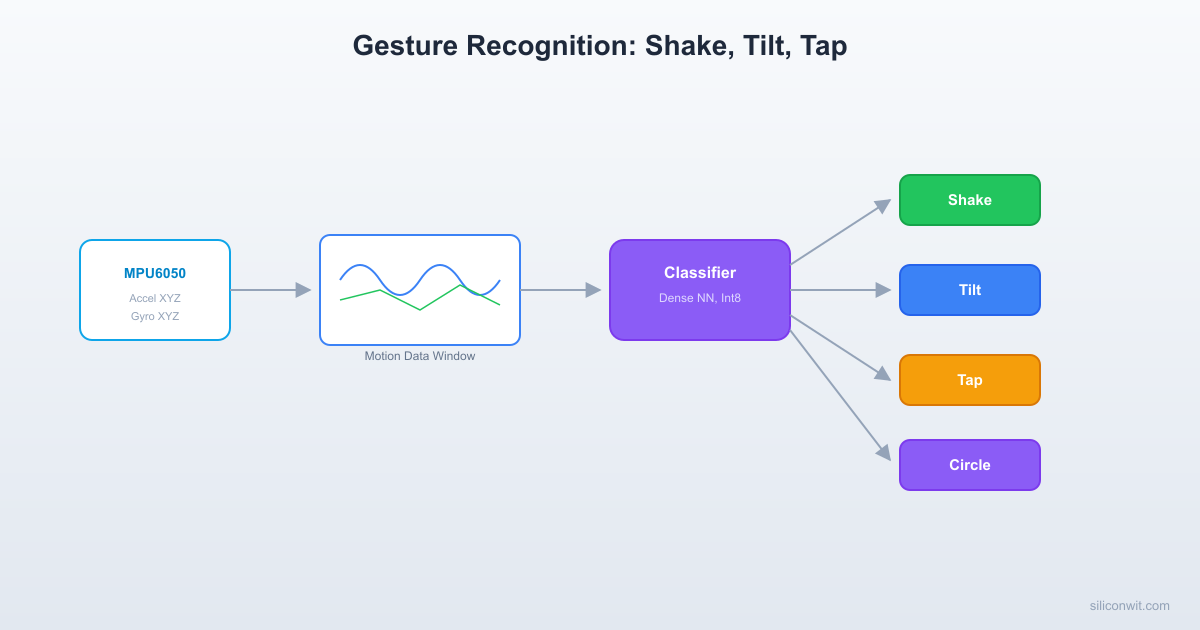

  Gesture Recognition Pipeline
  ──────────────────────────────────────────
  MPU6050       Collect         Preprocess
  (100 Hz) ──► 1s window ──► Normalize to
  ax,ay,az     (100 x 6       [-1, 1]
  gx,gy,gz      = 600 vals)      │
                                  ▼
                            ┌───────────┐
                            │ Dense NN  │
                            │ 600 ► 64  │
                            │  64 ► 32  │
                            │  32 ► 4   │
                            └─────┬─────┘
                                  │
                    ┌─────────────┼──────────┐
                    ▼             ▼          ▼
                 shake         tilt       circle
                 (0.92)       (0.04)     (0.03)
                   ▲
                   └── highest = prediction

from machine import I2C, Pin
import struct
import time

class MPU6050:
    """Minimal MPU6050 driver for accelerometer and gyroscope data."""

    ADDR = 0x68
    PWR_MGMT_1 = 0x6B
    ACCEL_XOUT_H = 0x3B
    ACCEL_CONFIG = 0x1C
    GYRO_CONFIG = 0x1B
    SMPLRT_DIV = 0x19

    def __init__(self, i2c, addr=0x68):
        self.i2c = i2c
        self.addr = addr
        # Wake up the sensor
        self.i2c.writeto_mem(self.addr, self.PWR_MGMT_1, b'\x00')
        time.sleep_ms(100)
        # Set accelerometer range to +/- 2g
        self.i2c.writeto_mem(self.addr, self.ACCEL_CONFIG, b'\x00')
        # Set gyroscope range to +/- 250 deg/s
        self.i2c.writeto_mem(self.addr, self.GYRO_CONFIG, b'\x00')
        # Set sample rate divider for 100 Hz (1 kHz / (1 + 9))
        self.i2c.writeto_mem(self.addr, self.SMPLRT_DIV, b'\x09')

    def read_raw(self):
        """Read 14 bytes: accel(6) + temp(2) + gyro(6)."""
        data = self.i2c.readfrom_mem(self.addr, self.ACCEL_XOUT_H, 14)
        vals = struct.unpack('>hhhhhhh', data)
        # Return ax, ay, az, gx, gy, gz (skip temperature at vals[3])
        return vals[0], vals[1], vals[2], vals[4], vals[5], vals[6]

    def read_scaled(self):
        """Return scaled values in g (accel) and deg/s (gyro)."""
        raw = self.read_raw()
        ax = raw[0] / 16384.0
        ay = raw[1] / 16384.0
        az = raw[2] / 16384.0
        gx = raw[3] / 131.0
        gy = raw[4] / 131.0
        gz = raw[5] / 131.0
        return ax, ay, az, gx, gy, gz

import time
import os
from machine import I2C, Pin

# Initialize I2C and sensor
i2c = I2C(0, sda=Pin(4), scl=Pin(5), freq=400000)
mpu = MPU6050(i2c)

# LED for status
led = Pin(25, Pin.OUT)

SAMPLE_RATE = 100   # Hz
WINDOW_SIZE = 100   # 1 second at 100 Hz
GESTURES = ['shake', 'tilt', 'tap', 'circle']

def collect_gesture(gesture_name, num_samples=50):
    """Collect multiple windows of a single gesture."""
    # Create directory if it does not exist
    try:
        os.mkdir('/data')
    except OSError:
        pass
    try:
        os.mkdir(f'/data/{gesture_name}')
    except OSError:
        pass

    for sample_idx in range(num_samples):
        print(f"Sample {sample_idx + 1}/{num_samples}: "
              f"Perform '{gesture_name}' in 3 seconds...")

        # Countdown
        for countdown in range(3, 0, -1):
            print(f"  {countdown}...")
            time.sleep(1)

        print("  GO! Recording...")
        led.value(1)

        # Capture one window
        window = []
        interval_us = 1000000 // SAMPLE_RATE
        next_sample_time = time.ticks_us()

        for i in range(WINDOW_SIZE):
            ax, ay, az, gx, gy, gz = mpu.read_scaled()
            window.append((ax, ay, az, gx, gy, gz))

            next_sample_time = time.ticks_add(next_sample_time, interval_us)
            while time.ticks_diff(next_sample_time, time.ticks_us()) > 0:
                pass

        led.value(0)
        print("  Done! Saving...")

        # Save to CSV
        filename = f'/data/{gesture_name}/sample_{sample_idx:03d}.csv'
        with open(filename, 'w') as f:
            f.write('ax,ay,az,gx,gy,gz\n')
            for row in window:
                f.write(f'{row[0]:.4f},{row[1]:.4f},{row[2]:.4f},'
                        f'{row[3]:.2f},{row[4]:.2f},{row[5]:.2f}\n')

        print(f"  Saved: {filename}")
        time.sleep(1)

# Collect data for each gesture
for gesture in GESTURES:
    input(f"\nPress Enter to start collecting '{gesture}' samples...")
    collect_gesture(gesture, num_samples=50)

print("\nData collection complete!")

#include "stm32f4xx_hal.h"
#include <stdio.h>
#include <string.h>

#define MPU6050_ADDR       (0x68 << 1)
#define ACCEL_XOUT_H       0x3B
#define PWR_MGMT_1         0x6B
#define SAMPLE_RATE_HZ     100
#define WINDOW_SIZE        100
#define NUM_AXES           6

extern I2C_HandleTypeDef hi2c1;
extern UART_HandleTypeDef huart2;

typedef struct {
    float ax, ay, az;
    float gx, gy, gz;
} imu_sample_t;

static imu_sample_t window_buffer[WINDOW_SIZE];

static void mpu6050_init(void)
{
    uint8_t data;

    /* Wake up MPU6050 */
    data = 0x00;
    HAL_I2C_Mem_Write(&hi2c1, MPU6050_ADDR, PWR_MGMT_1,
                      I2C_MEMADD_SIZE_8BIT, &data, 1, 100);
    HAL_Delay(100);

    /* Accel range: +/- 2g */
    data = 0x00;
    HAL_I2C_Mem_Write(&hi2c1, MPU6050_ADDR, 0x1C,
                      I2C_MEMADD_SIZE_8BIT, &data, 1, 100);

    /* Gyro range: +/- 250 deg/s */
    data = 0x00;
    HAL_I2C_Mem_Write(&hi2c1, MPU6050_ADDR, 0x1B,
                      I2C_MEMADD_SIZE_8BIT, &data, 1, 100);

    /* Sample rate: 100 Hz */
    data = 0x09;
    HAL_I2C_Mem_Write(&hi2c1, MPU6050_ADDR, 0x19,
                      I2C_MEMADD_SIZE_8BIT, &data, 1, 100);
}

static void mpu6050_read(imu_sample_t *sample)
{
    uint8_t raw[14];
    HAL_I2C_Mem_Read(&hi2c1, MPU6050_ADDR, ACCEL_XOUT_H,
                     I2C_MEMADD_SIZE_8BIT, raw, 14, 100);

    int16_t ax = (int16_t)((raw[0] << 8) | raw[1]);
    int16_t ay = (int16_t)((raw[2] << 8) | raw[3]);
    int16_t az = (int16_t)((raw[4] << 8) | raw[5]);
    /* raw[6..7] is temperature, skip */
    int16_t gx = (int16_t)((raw[8] << 8) | raw[9]);
    int16_t gy = (int16_t)((raw[10] << 8) | raw[11]);
    int16_t gz = (int16_t)((raw[12] << 8) | raw[13]);

    sample->ax = ax / 16384.0f;
    sample->ay = ay / 16384.0f;
    sample->az = az / 16384.0f;
    sample->gx = gx / 131.0f;
    sample->gy = gy / 131.0f;
    sample->gz = gz / 131.0f;
}

static void capture_window(void)
{
    uint32_t interval_ms = 1000 / SAMPLE_RATE_HZ;

    for (int i = 0; i < WINDOW_SIZE; i++) {
        uint32_t start = HAL_GetTick();
        mpu6050_read(&window_buffer[i]);

        /* Wait for next sample period */
        while ((HAL_GetTick() - start) < interval_ms) {
            /* spin */
        }
    }
}

static void print_window_csv(const char *label)
{
    char buf[128];

    snprintf(buf, sizeof(buf), "BEGIN,%s\r\n", label);
    HAL_UART_Transmit(&huart2, (uint8_t *)buf, strlen(buf), 100);

    for (int i = 0; i < WINDOW_SIZE; i++) {
        snprintf(buf, sizeof(buf),
                 "%.4f,%.4f,%.4f,%.2f,%.2f,%.2f\r\n",
                 window_buffer[i].ax, window_buffer[i].ay,
                 window_buffer[i].az, window_buffer[i].gx,
                 window_buffer[i].gy, window_buffer[i].gz);
        HAL_UART_Transmit(&huart2, (uint8_t *)buf, strlen(buf), 100);
    }

    snprintf(buf, sizeof(buf), "END\r\n");
    HAL_UART_Transmit(&huart2, (uint8_t *)buf, strlen(buf), 100);
}

/* Call from main loop when user presses the blue button */
void collect_gesture_sample(const char *label)
{
    char buf[64];
    snprintf(buf, sizeof(buf), "Recording '%s' in 3...\r\n", label);
    HAL_UART_Transmit(&huart2, (uint8_t *)buf, strlen(buf), 100);
    HAL_Delay(1000);

    HAL_UART_Transmit(&huart2, (uint8_t *)"2...\r\n", 6, 100);
    HAL_Delay(1000);

    HAL_UART_Transmit(&huart2, (uint8_t *)"1...\r\n", 6, 100);
    HAL_Delay(1000);

    HAL_UART_Transmit(&huart2, (uint8_t *)"GO!\r\n", 5, 100);

    /* Turn on LED during capture */
    HAL_GPIO_WritePin(GPIOA, GPIO_PIN_5, GPIO_PIN_SET);
    capture_window();
    HAL_GPIO_WritePin(GPIOA, GPIO_PIN_5, GPIO_PIN_RESET);

    print_window_csv(label);
}

import serial
import os
import sys

PORT = '/dev/ttyACM0'  # Adjust for your system
BAUD = 115200
OUTPUT_DIR = 'data'

ser = serial.Serial(PORT, BAUD, timeout=2)
os.makedirs(OUTPUT_DIR, exist_ok=True)

sample_counts = {}

print("Listening for gesture data on", PORT)
print("Press the blue button on the STM32 to capture a sample.")

while True:
    line = ser.readline().decode('utf-8', errors='ignore').strip()

    if line.startswith('BEGIN,'):
        label = line.split(',')[1]
        if label not in sample_counts:
            sample_counts[label] = 0

        rows = []
        while True:
            data_line = ser.readline().decode('utf-8', errors='ignore').strip()
            if data_line == 'END':
                break
            rows.append(data_line)

        # Save to file
        label_dir = os.path.join(OUTPUT_DIR, label)
        os.makedirs(label_dir, exist_ok=True)

        idx = sample_counts[label]
        filename = os.path.join(label_dir, f'sample_{idx:03d}.csv')
        with open(filename, 'w') as f:
            f.write('ax,ay,az,gx,gy,gz\n')
            for row in rows:
                f.write(row + '\n')

        sample_counts[label] += 1
        print(f"Saved {label} sample #{idx}: {filename} ({len(rows)} rows)")

import numpy as np
import os
import tensorflow as tf
from tensorflow import keras
from tensorflow.keras import layers

DATA_DIR = 'data'
GESTURES = ['shake', 'tilt', 'tap', 'circle']
WINDOW_SIZE = 100
NUM_AXES = 6

def load_gesture_data(data_dir, gestures):
    """Load all CSV files and return X (samples x 600) and y (labels)."""
    X = []
    y = []

    for label_idx, gesture in enumerate(gestures):
        gesture_dir = os.path.join(data_dir, gesture)
        if not os.path.exists(gesture_dir):
            print(f"Warning: {gesture_dir} not found")
            continue

        files = sorted([f for f in os.listdir(gesture_dir)
                       if f.endswith('.csv')])
        print(f"  {gesture}: {len(files)} samples")

        for fname in files:
            filepath = os.path.join(gesture_dir, fname)
            data = np.genfromtxt(filepath, delimiter=',', skip_header=1)

            if data.shape[0] != WINDOW_SIZE or data.shape[1] != NUM_AXES:
                print(f"  Skipping {fname}: shape {data.shape}")
                continue

            # Flatten the window into a 1D vector
            X.append(data.flatten())
            y.append(label_idx)

    return np.array(X, dtype=np.float32), np.array(y, dtype=np.int32)

X, y = load_gesture_data(DATA_DIR, GESTURES)
print(f"\nTotal samples: {len(X)}")
print(f"Input shape: {X.shape}")

# Normalize: zero mean, unit variance per axis
# Reshape to (N, 100, 6) for axis-wise normalization
X_reshaped = X.reshape(-1, WINDOW_SIZE, NUM_AXES)
means = X_reshaped.mean(axis=(0, 1))
stds = X_reshaped.std(axis=(0, 1))
stds[stds == 0] = 1.0  # Prevent division by zero

X_reshaped = (X_reshaped - means) / stds
X = X_reshaped.reshape(-1, WINDOW_SIZE * NUM_AXES)

print(f"Normalization means: {means}")
print(f"Normalization stds:  {stds}")

# Save normalization parameters (needed for on-device preprocessing)
np.save('norm_means.npy', means)
np.save('norm_stds.npy', stds)

# Train/validation/test split
from sklearn.model_selection import train_test_split

X_train, X_temp, y_train, y_temp = train_test_split(
    X, y, test_size=0.2, random_state=42, stratify=y)
X_val, X_test, y_val, y_test = train_test_split(
    X_temp, y_temp, test_size=0.5, random_state=42, stratify=y_temp)

print(f"Train: {len(X_train)}, Val: {len(X_val)}, Test: {len(X_test)}")

def build_gesture_model(input_dim, num_classes):
    """Small dense model for gesture classification."""
    model = keras.Sequential([
        layers.Input(shape=(input_dim,)),
        layers.Dense(64, activation='relu'),
        layers.Dropout(0.3),
        layers.Dense(32, activation='relu'),
        layers.Dropout(0.3),
        layers.Dense(num_classes, activation='softmax'),
    ])

    model.compile(
        optimizer=keras.optimizers.Adam(learning_rate=0.001),
        loss='sparse_categorical_crossentropy',
        metrics=['accuracy'])

    return model

model = build_gesture_model(WINDOW_SIZE * NUM_AXES, len(GESTURES))
model.summary()

# Train
history = model.fit(
    X_train, y_train,
    validation_data=(X_val, y_val),
    epochs=50,
    batch_size=16,
    callbacks=[
        keras.callbacks.EarlyStopping(patience=8, restore_best_weights=True),
        keras.callbacks.ReduceLROnPlateau(factor=0.5, patience=4),
    ])

# Evaluate
test_loss, test_acc = model.evaluate(X_test, y_test)
print(f"\nTest accuracy: {test_acc:.4f}")

# Confusion matrix
from sklearn.metrics import confusion_matrix, classification_report

y_pred = model.predict(X_test).argmax(axis=1)
print("\nClassification Report:")
print(classification_report(y_test, y_pred, target_names=GESTURES))

Total params: 6,276
Trainable params: 6,276

Test accuracy: 0.9500

Classification Report:
              precision    recall  f1-score   support
       shake       0.96      0.96      0.96        25
        tilt       0.92      0.96      0.94        25
         tap       0.96      0.92      0.94        25
      circle       0.96      0.96      0.96        25

# Post-training int8 quantization
def representative_dataset():
    for i in range(min(100, len(X_train))):
        yield [X_train[i:i+1]]

converter = tf.lite.TFLiteConverter.from_keras_model(model)
converter.optimizations = [tf.lite.Optimize.DEFAULT]
converter.representative_dataset = representative_dataset
converter.target_spec.supported_ops = [tf.lite.OpsSet.TFLITE_BUILTINS_INT8]
converter.inference_input_type = tf.int8
converter.inference_output_type = tf.int8

tflite_model = converter.convert()

with open('gesture_model.tflite', 'wb') as f:
    f.write(tflite_model)

print(f"Quantized model size: {len(tflite_model)} bytes")

# Convert to C header
import subprocess
subprocess.run(['xxd', '-i', 'gesture_model.tflite', 'gesture_model.h'])

# Also export normalization constants as C arrays
print("\n/* Normalization constants (paste into firmware) */")
print("static const float NORM_MEANS[] = {",
      ', '.join(f'{m:.6f}f' for m in means), "};")
print("static const float NORM_STDS[] = {",
      ', '.join(f'{s:.6f}f' for s in stds), "};")

#include <stdio.h>
#include <string.h>
#include <math.h>
#include "pico/stdlib.h"
#include "hardware/i2c.h"
#include "hardware/gpio.h"
#include "hardware/timer.h"

#include "tensorflow/lite/micro/micro_interpreter.h"
#include "tensorflow/lite/micro/micro_mutable_op_resolver.h"
#include "tensorflow/lite/schema/schema_generated.h"
#include "gesture_model.h"

/* I2C and sensor config */
#define I2C_PORT       i2c0
#define I2C_SDA_PIN    4
#define I2C_SCL_PIN    5
#define MPU6050_ADDR   0x68

/* Gesture parameters */
#define SAMPLE_RATE_HZ   100
#define WINDOW_SIZE      100
#define NUM_AXES         6
#define INPUT_SIZE       (WINDOW_SIZE * NUM_AXES)
#define NUM_CLASSES      4

/* LED pins (adjust for your wiring) */
#define LED_SHAKE_PIN   16
#define LED_TILT_PIN    17
#define LED_TAP_PIN     18
#define LED_CIRCLE_PIN  19

/* Normalization constants (from training script) */
static const float NORM_MEANS[] = {0.0f, 0.0f, 1.0f, 0.0f, 0.0f, 0.0f};
static const float NORM_STDS[]  = {1.0f, 1.0f, 1.0f, 1.0f, 1.0f, 1.0f};
/* Replace with actual values from your training output */

static const char *GESTURE_LABELS[] = {"shake", "tilt", "tap", "circle"};
static const uint LED_PINS[] = {
    LED_SHAKE_PIN, LED_TILT_PIN, LED_TAP_PIN, LED_CIRCLE_PIN
};

/* TFLite Micro */
#define TENSOR_ARENA_SIZE  (24 * 1024)
static uint8_t tensor_arena[TENSOR_ARENA_SIZE] __attribute__((aligned(16)));

/* IMU data buffer */
static float imu_window[WINDOW_SIZE][NUM_AXES];

/* ---- MPU6050 functions ---- */

static void mpu6050_init(void)
{
    uint8_t buf[2];

    /* Wake up */
    buf[0] = 0x6B; buf[1] = 0x00;
    i2c_write_blocking(I2C_PORT, MPU6050_ADDR, buf, 2, false);
    sleep_ms(100);

    /* Accel +/- 2g */
    buf[0] = 0x1C; buf[1] = 0x00;
    i2c_write_blocking(I2C_PORT, MPU6050_ADDR, buf, 2, false);

    /* Gyro +/- 250 deg/s */
    buf[0] = 0x1B; buf[1] = 0x00;
    i2c_write_blocking(I2C_PORT, MPU6050_ADDR, buf, 2, false);

    /* Sample rate 100 Hz */
    buf[0] = 0x19; buf[1] = 0x09;
    i2c_write_blocking(I2C_PORT, MPU6050_ADDR, buf, 2, false);
}

static void mpu6050_read(float *ax, float *ay, float *az,
                          float *gx, float *gy, float *gz)
{
    uint8_t reg = 0x3B;
    uint8_t raw[14];

    i2c_write_blocking(I2C_PORT, MPU6050_ADDR, &reg, 1, true);
    i2c_read_blocking(I2C_PORT, MPU6050_ADDR, raw, 14, false);

    int16_t raw_ax = (int16_t)((raw[0] << 8) | raw[1]);
    int16_t raw_ay = (int16_t)((raw[2] << 8) | raw[3]);
    int16_t raw_az = (int16_t)((raw[4] << 8) | raw[5]);
    int16_t raw_gx = (int16_t)((raw[8] << 8) | raw[9]);
    int16_t raw_gy = (int16_t)((raw[10] << 8) | raw[11]);
    int16_t raw_gz = (int16_t)((raw[12] << 8) | raw[13]);

    *ax = raw_ax / 16384.0f;
    *ay = raw_ay / 16384.0f;
    *az = raw_az / 16384.0f;
    *gx = raw_gx / 131.0f;
    *gy = raw_gy / 131.0f;
    *gz = raw_gz / 131.0f;
}

/* ---- Capture and normalize ---- */

static void capture_window(void)
{
    uint32_t interval_us = 1000000 / SAMPLE_RATE_HZ;

    for (int i = 0; i < WINDOW_SIZE; i++) {
        uint64_t start = time_us_64();

        mpu6050_read(&imu_window[i][0], &imu_window[i][1],
                     &imu_window[i][2], &imu_window[i][3],
                     &imu_window[i][4], &imu_window[i][5]);

        /* Wait for next sample period */
        while ((time_us_64() - start) < interval_us) {
            tight_loop_contents();
        }
    }
}

static void normalize_window(float *flat_output)
{
    for (int i = 0; i < WINDOW_SIZE; i++) {
        for (int j = 0; j < NUM_AXES; j++) {
            flat_output[i * NUM_AXES + j] =
                (imu_window[i][j] - NORM_MEANS[j]) / NORM_STDS[j];
        }
    }
}

/* ---- Main ---- */

int main(void)
{
    stdio_init_all();

    /* Initialize I2C */
    i2c_init(I2C_PORT, 400 * 1000);
    gpio_set_function(I2C_SDA_PIN, GPIO_FUNC_I2C);
    gpio_set_function(I2C_SCL_PIN, GPIO_FUNC_I2C);
    gpio_pull_up(I2C_SDA_PIN);
    gpio_pull_up(I2C_SCL_PIN);

    /* Initialize MPU6050 */
    mpu6050_init();

    /* Initialize LED pins */
    for (int i = 0; i < NUM_CLASSES; i++) {
        gpio_init(LED_PINS[i]);
        gpio_set_dir(LED_PINS[i], GPIO_OUT);
        gpio_put(LED_PINS[i], 0);
    }

    /* Initialize TFLite Micro */
    const tflite::Model *model = tflite::GetModel(gesture_model_tflite);

    static tflite::MicroMutableOpResolver<3> resolver;
    resolver.AddFullyConnected();
    resolver.AddSoftmax();
    resolver.AddReshape();

    static tflite::MicroInterpreter interpreter(
        model, resolver, tensor_arena, TENSOR_ARENA_SIZE);
    interpreter.AllocateTensors();

    TfLiteTensor *input = interpreter.input(0);
    TfLiteTensor *output = interpreter.output(0);

    printf("Gesture classifier ready. Arena used: %zu bytes\n",
           interpreter.arena_used_bytes());

    float normalized[INPUT_SIZE];

    while (1) {
        /* Capture 1-second window */
        capture_window();

        /* Normalize */
        normalize_window(normalized);

        /* Quantize input */
        float input_scale = input->params.scale;
        int input_zp = input->params.zero_point;
        int8_t *input_data = input->data.int8;

        for (int i = 0; i < INPUT_SIZE; i++) {
            int32_t q = (int32_t)(normalized[i] / input_scale) + input_zp;
            if (q < -128) q = -128;
            if (q > 127) q = 127;
            input_data[i] = (int8_t)q;
        }

        /* Run inference */
        uint64_t t_start = time_us_64();
        interpreter.Invoke();
        uint64_t t_end = time_us_64();

        /* Dequantize output */
        float output_scale = output->params.scale;
        int output_zp = output->params.zero_point;
        int8_t *output_data = output->data.int8;

        int best = 0;
        float best_score = -100.0f;
        for (int i = 0; i < NUM_CLASSES; i++) {
            float score = (output_data[i] - output_zp) * output_scale;
            if (score > best_score) {
                best_score = score;
                best = i;
            }
        }

        printf("Gesture: %s (%.2f), Inference: %llu us\n",
               GESTURE_LABELS[best], best_score,
               (unsigned long long)(t_end - t_start));

        /* LED feedback: light the corresponding LED for 500 ms */
        if (best_score > 0.6f) {
            gpio_put(LED_PINS[best], 1);
            sleep_ms(500);
            gpio_put(LED_PINS[best], 0);
        }
    }

    return 0;
}

#include "stm32f4xx_hal.h"
#include <stdio.h>
#include <string.h>

#include "tensorflow/lite/micro/micro_interpreter.h"
#include "tensorflow/lite/micro/micro_mutable_op_resolver.h"
#include "tensorflow/lite/schema/schema_generated.h"
#include "gesture_model.h"

extern I2C_HandleTypeDef hi2c1;
extern UART_HandleTypeDef huart2;
extern TIM_HandleTypeDef htim2;

#define MPU6050_ADDR    (0x68 << 1)
#define WINDOW_SIZE     100
#define NUM_AXES        6
#define INPUT_SIZE      (WINDOW_SIZE * NUM_AXES)
#define NUM_CLASSES     4

#define TENSOR_ARENA_SIZE  (24 * 1024)
static uint8_t tensor_arena[TENSOR_ARENA_SIZE]
    __attribute__((aligned(16)));

static const float NORM_MEANS[] = {0.0f, 0.0f, 1.0f, 0.0f, 0.0f, 0.0f};
static const float NORM_STDS[]  = {1.0f, 1.0f, 1.0f, 1.0f, 1.0f, 1.0f};

static const char *GESTURE_LABELS[] = {"shake", "tilt", "tap", "circle"};

/* GPIO pins for feedback LEDs (adjust for your board) */
#define LED_PORT  GPIOB
static const uint16_t LED_PINS[] = {
    GPIO_PIN_0, GPIO_PIN_1, GPIO_PIN_2, GPIO_PIN_3
};

static float imu_window[WINDOW_SIZE][NUM_AXES];

static void mpu6050_read_scaled(float *out)
{
    uint8_t raw[14];
    HAL_I2C_Mem_Read(&hi2c1, MPU6050_ADDR, 0x3B,
                     I2C_MEMADD_SIZE_8BIT, raw, 14, 100);

    int16_t ax = (int16_t)((raw[0] << 8) | raw[1]);
    int16_t ay = (int16_t)((raw[2] << 8) | raw[3]);
    int16_t az = (int16_t)((raw[4] << 8) | raw[5]);
    int16_t gx = (int16_t)((raw[8] << 8) | raw[9]);
    int16_t gy = (int16_t)((raw[10] << 8) | raw[11]);
    int16_t gz = (int16_t)((raw[12] << 8) | raw[13]);

    out[0] = ax / 16384.0f;
    out[1] = ay / 16384.0f;
    out[2] = az / 16384.0f;
    out[3] = gx / 131.0f;
    out[4] = gy / 131.0f;
    out[5] = gz / 131.0f;
}

static void capture_and_normalize(float *flat_output)
{
    for (int i = 0; i < WINDOW_SIZE; i++) {
        uint32_t start = HAL_GetTick();
        mpu6050_read_scaled(imu_window[i]);

        while ((HAL_GetTick() - start) < 10) {
            /* 10 ms interval for 100 Hz */
        }
    }

    for (int i = 0; i < WINDOW_SIZE; i++) {
        for (int j = 0; j < NUM_AXES; j++) {
            flat_output[i * NUM_AXES + j] =
                (imu_window[i][j] - NORM_MEANS[j]) / NORM_STDS[j];
        }
    }
}

void gesture_recognition_main(void)
{
    char uart_buf[128];

    /* Initialize TFLite Micro */
    const tflite::Model *model = tflite::GetModel(gesture_model_tflite);

    static tflite::MicroMutableOpResolver<3> resolver;
    resolver.AddFullyConnected();
    resolver.AddSoftmax();
    resolver.AddReshape();

    static tflite::MicroInterpreter interpreter(
        model, resolver, tensor_arena, TENSOR_ARENA_SIZE);
    interpreter.AllocateTensors();

    TfLiteTensor *input = interpreter.input(0);
    TfLiteTensor *output = interpreter.output(0);

    snprintf(uart_buf, sizeof(uart_buf),
             "Gesture classifier ready. Arena: %zu bytes\r\n",
             interpreter.arena_used_bytes());
    HAL_UART_Transmit(&huart2, (uint8_t *)uart_buf,
                      strlen(uart_buf), 100);

    float normalized[INPUT_SIZE];

    while (1) {
        capture_and_normalize(normalized);

        /* Quantize input */
        float in_scale = input->params.scale;
        int in_zp = input->params.zero_point;
        int8_t *in_data = input->data.int8;

        for (int i = 0; i < INPUT_SIZE; i++) {
            int32_t q = (int32_t)(normalized[i] / in_scale) + in_zp;
            if (q < -128) q = -128;
            if (q > 127) q = 127;
            in_data[i] = (int8_t)q;
        }

        /* Time the inference */
        uint32_t t0 = __HAL_TIM_GET_COUNTER(&htim2);
        interpreter.Invoke();
        uint32_t t1 = __HAL_TIM_GET_COUNTER(&htim2);
        uint32_t inference_us = t1 - t0;

        /* Dequantize and find best class */
        float out_scale = output->params.scale;
        int out_zp = output->params.zero_point;
        int8_t *out_data = output->data.int8;

        int best = 0;
        float best_score = -100.0f;
        for (int i = 0; i < NUM_CLASSES; i++) {
            float score = (out_data[i] - out_zp) * out_scale;
            if (score > best_score) {
                best_score = score;
                best = i;
            }
        }

        snprintf(uart_buf, sizeof(uart_buf),
                 "Gesture: %s (%.2f), Infer: %lu us\r\n",
                 GESTURE_LABELS[best], best_score,
                 (unsigned long)inference_us);
        HAL_UART_Transmit(&huart2, (uint8_t *)uart_buf,
                          strlen(uart_buf), 100);

        /* LED feedback */
        if (best_score > 0.6f) {
            HAL_GPIO_WritePin(LED_PORT, LED_PINS[best], GPIO_PIN_SET);
            HAL_Delay(500);
            HAL_GPIO_WritePin(LED_PORT, LED_PINS[best], GPIO_PIN_RESET);
        }
    }
}

static void led_chase_pattern(uint32_t duration_ms)
{
    uint32_t start = HAL_GetTick();
    int idx = 0;
    while ((HAL_GetTick() - start) < duration_ms) {
        for (int i = 0; i < NUM_CLASSES; i++) {
            HAL_GPIO_WritePin(LED_PORT, LED_PINS[i],
                              (i == idx) ? GPIO_PIN_SET : GPIO_PIN_RESET);
        }
        idx = (idx + 1) % NUM_CLASSES;
        HAL_Delay(80);
    }
    /* Turn all off */
    for (int i = 0; i < NUM_CLASSES; i++) {
        HAL_GPIO_WritePin(LED_PORT, LED_PINS[i], GPIO_PIN_RESET);
    }
}

# MicroPython MQTT publish (for Pico W with Wi-Fi)
from umqtt.simple import MQTTClient
import json
import time

MQTT_BROKER = "broker.hivemq.com"
MQTT_TOPIC = "device/gesture/detected"
CLIENT_ID = "pico-gesture"

client = MQTTClient(CLIENT_ID, MQTT_BROKER)
client.connect()

def publish_gesture(gesture_name, confidence):
    payload = json.dumps({
        "gesture": gesture_name,
        "confidence": round(confidence, 2),
        "device": "pico-w",
        "timestamp": time.time()
    })
    client.publish(MQTT_TOPIC, payload)
    print(f"Published: {payload}")
