Up to this point, every project has used a single main loop with interrupt handlers. That works fine for simple firmware, but as complexity grows, the main loop turns into a tangled mess of timing workarounds and state machines. FreeRTOS solves this by letting you split your firmware into independent tasks, each with its own stack and priority. In this lesson you will restructure the sensor dashboard from previous lessons into clean, separate tasks that communicate through queues and share resources safely with mutexes. #STM32 #FreeRTOS #RTOS
Multitasking Sensor Dashboard
Three independent tasks running on FreeRTOS: a sensor task that reads the BME280 every 500 ms and pushes data into a queue, a display task that pulls from the queue and updates the SSD1306 OLED, and a serial logging task that formats readings and sends them over UART with DMA. A mutex protects the I2C bus (shared between the BME280 and the INA219), and a binary semaphore synchronizes the display update with fresh data arrival.
Project specifications:
| Parameter | Value |
|---|---|
| Board | Blue Pill (STM32F103C8T6) |
| RTOS | FreeRTOS v10.5+ (kernel only, no CMSIS-RTOS wrapper) |
| Task: Sensor | Priority 3 (high), 256-word stack, reads BME280 every 500 ms |
| Task: Display | Priority 2 (medium), 256-word stack, updates OLED on queue receive |
| Task: Logger | Priority 1 (low), 256-word stack, formats and sends serial output |
| Task: Idle | Priority 0 (built-in), runs __WFI for low power |
| Queue | 4 slots, each holds a sensor_data_t struct (12 bytes) |
| Mutex | I2C bus access (BME280 and INA219 share I2C1) |
| Parts | Reuse existing (OLED, BME280, serial adapter) |
Download FreeRTOS from freertos.org or clone from GitHub:
git clone https://github.com/FreeRTOS/FreeRTOS-Kernel.gitCopy these files into your project:
Create FreeRTOSConfig.h in your project’s include directory.
#ifndef FREERTOS_CONFIG_H#define FREERTOS_CONFIG_H
/* Cortex-M3 specific */#define configCPU_CLOCK_HZ 72000000#define configSYSTICK_CLOCK_HZ 72000000
/* Scheduler */#define configUSE_PREEMPTION 1#define configUSE_TIME_SLICING 1#define configMAX_PRIORITIES 5#define configMINIMAL_STACK_SIZE 128 /* Words (512 bytes) */#define configTICK_RATE_HZ 1000 /* 1 ms tick */
/* Memory */#define configTOTAL_HEAP_SIZE 10240 /* 10 KB for FreeRTOS heap */#define configUSE_MALLOC_FAILED_HOOK 1
/* Features */#define configUSE_MUTEXES 1#define configUSE_COUNTING_SEMAPHORES 1#define configUSE_QUEUE_SETS 0#define configUSE_TASK_NOTIFICATIONS 1#define configUSE_TRACE_FACILITY 1#define configUSE_IDLE_HOOK 1#define configUSE_TICK_HOOK 0
/* Cortex-M interrupt priorities */#define configKERNEL_INTERRUPT_PRIORITY 255#define configMAX_SYSCALL_INTERRUPT_PRIORITY 191#define configLIBRARY_KERNEL_INTERRUPT_PRIORITY 15#define configLIBRARY_MAX_SYSCALL_INTERRUPT_PRIORITY 5
/* Map FreeRTOS handlers to standard names */#define vPortSVCHandler SVC_Handler#define xPortPendSVHandler PendSV_Handler#define xPortSysTickHandler SysTick_Handler
#endif# Add FreeRTOS sourcesFREERTOS_DIR = freertos/FreeRTOS/SourceFREERTOS_SRCS = $(FREERTOS_DIR)/tasks.c \ $(FREERTOS_DIR)/queue.c \ $(FREERTOS_DIR)/list.c \ $(FREERTOS_DIR)/portable/GCC/ARM_CM3/port.c \ $(FREERTOS_DIR)/portable/MemMang/heap_4.c
CFLAGS += -I$(FREERTOS_DIR)/include \ -I$(FREERTOS_DIR)/portable/GCC/ARM_CM3

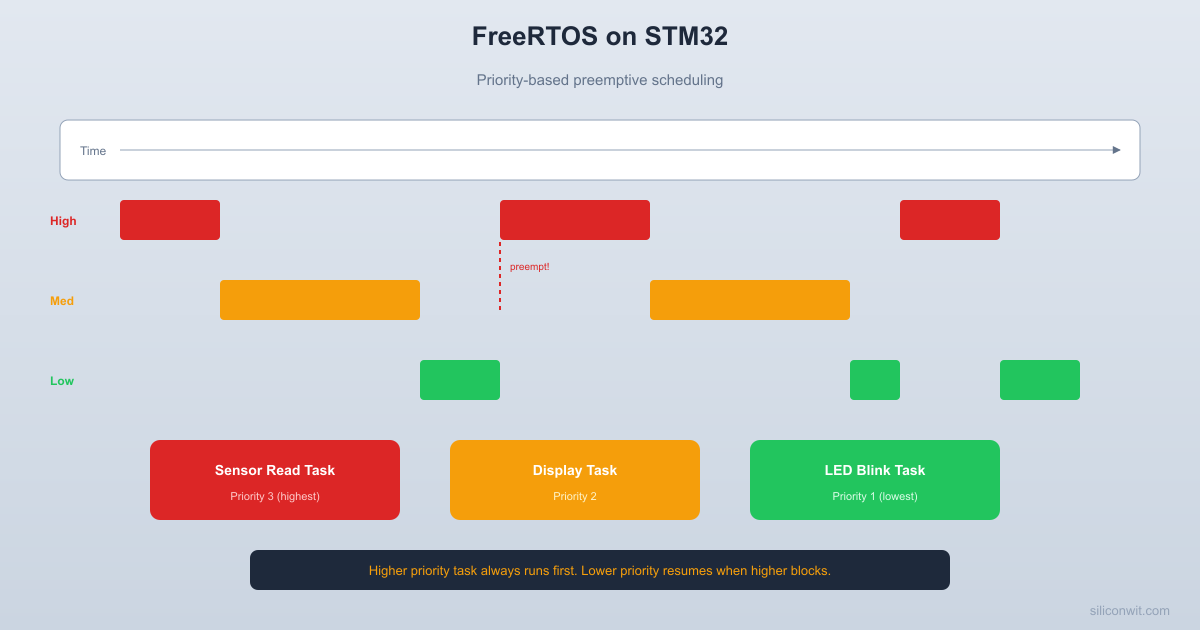

SRCS += $(FREERTOS_SRCS)The FreeRTOS scheduler switches between tasks based on priority. Each task has its own stack and runs independently. The SysTick interrupt drives the tick timer that triggers context switches.
FreeRTOS task scheduling (preemptive):
Priority 3 [Sensor ] [Sensor ] Priority 2 [Display] [Display] Priority 1 [Logger ] Priority 0 [Idle] [Idle] +----+--+------+-+------+--+-----> time ^ ^ ^ ^ ^ ^ | | | | | | Sensor Display Logger Sensor Display wakes gets gets wakes gets (500ms) data CPU again data from queue
Higher priority always preempts lower. Blocked tasks consume zero CPU time.A FreeRTOS task is a C function that runs in its own context with its own stack. The scheduler switches between tasks based on priority: the highest-priority ready task always runs. When a task blocks (waiting on a queue, semaphore, or delay), the scheduler immediately switches to the next highest-priority ready task. Tasks never return; they contain an infinite loop and use vTaskDelay() or blocking API calls to yield CPU time.
/* Task function signature */void sensor_task(void *params) { /* One-time setup */ bme280_init();
/* Infinite loop */ for (;;) { /* Do work */ bme280_read(&data);
/* Block for 500 ms (yields CPU to other tasks) */ vTaskDelay(pdMS_TO_TICKS(500)); }}
/* Create the task */xTaskCreate(sensor_task, /* Function */ "Sensor", /* Name (for debugging) */ 256, /* Stack size in words */ NULL, /* Parameters */ 3, /* Priority (higher = more important) */ &sensor_handle); /* Handle (optional) */Queues are the primary way to pass data between tasks. Data flows from producers to consumers through a thread-safe FIFO.
Queue-based data flow:
+--------+ xQueueSend +---------+ | Sensor |===============>| Queue | | Task | sensor_data_t | (4 slots| | (P3) | | x 12B) | +--------+ +----+----+ | xQueueReceive| +-------+------+ | | +----+---+ +-----+---+ | Display| | Logger | | Task | | Task | | (P2) | | (P1) | +--------+ +---------+
Sensor sends every 500 ms. Display and Logger consume data. Queue blocks consumers when empty.They are thread-safe FIFO buffers with a fixed number of fixed-size slots. A producing task sends data with xQueueSend(), and a consuming task receives with xQueueReceive(). If the queue is full, the sender can block until space becomes available. If the queue is empty, the receiver blocks until data arrives. This blocking behavior is what makes FreeRTOS efficient: blocked tasks consume zero CPU time.
/* Data structure passed through the queue */typedef struct { int32_t temperature_c100; /* Celsius x 100 */ uint32_t pressure_pa; uint32_t humidity_q10; /* %RH x 10 */} sensor_data_t;
/* Create a queue with 4 slots */QueueHandle_t sensor_queue;sensor_queue = xQueueCreate(4, sizeof(sensor_data_t));/* Binary semaphore: signal that new data is available */SemaphoreHandle_t data_ready_sem;data_ready_sem = xSemaphoreCreateBinary();
/* In sensor task: signal new data */xSemaphoreGive(data_ready_sem);
/* In display task: wait for signal */xSemaphoreTake(data_ready_sem, portMAX_DELAY);A mutex (mutual exclusion) protects a shared resource so only one task accesses it at a time. Unlike a binary semaphore, a mutex has priority inheritance: if a low-priority task holds the mutex and a high-priority task is waiting for it, the low-priority task temporarily inherits the high priority to prevent priority inversion. Always use mutexes (not binary semaphores) for resource protection.
/* Mutex for I2C bus */SemaphoreHandle_t i2c_mutex;i2c_mutex = xSemaphoreCreateMutex();
/* In any task that uses I2C */if (xSemaphoreTake(i2c_mutex, pdMS_TO_TICKS(100)) == pdTRUE) { /* Safe to use I2C */ bme280_read(&data); xSemaphoreGive(i2c_mutex);} else { /* Timeout: could not acquire I2C bus */}/* Global handles */QueueHandle_t sensor_queue;SemaphoreHandle_t i2c_mutex;SemaphoreHandle_t spi_mutex;
void rtos_init(void) { sensor_queue = xQueueCreate(4, sizeof(sensor_data_t)); i2c_mutex = xSemaphoreCreateMutex(); spi_mutex = xSemaphoreCreateMutex();
configASSERT(sensor_queue != NULL); configASSERT(i2c_mutex != NULL); configASSERT(spi_mutex != NULL);}void sensor_task(void *params) { (void)params; bme280_init();
sensor_data_t data;
for (;;) { /* Acquire I2C bus */ if (xSemaphoreTake(i2c_mutex, pdMS_TO_TICKS(100)) == pdTRUE) { bme280_read(&data.temperature_c100, &data.pressure_pa, &data.humidity_q10); xSemaphoreGive(i2c_mutex);
/* Send to queue (overwrite oldest if full) */ xQueueSend(sensor_queue, &data, 0); }
vTaskDelay(pdMS_TO_TICKS(500)); }}void display_task(void *params) { (void)params; oled_init();
sensor_data_t data; char line[32];
for (;;) { /* Wait for data from sensor task */ if (xQueueReceive(sensor_queue, &data, pdMS_TO_TICKS(1000)) == pdTRUE) { /* Acquire SPI bus for OLED */ if (xSemaphoreTake(spi_mutex, pdMS_TO_TICKS(100)) == pdTRUE) { oled_clear();
oled_string(0, 0, "FreeRTOS Dashboard");
snprintf(line, sizeof(line), "T: %ld.%02ld C", (long)(data.temperature_c100 / 100), (long)(data.temperature_c100 % 100)); oled_string(0, 16, line);
snprintf(line, sizeof(line), "P: %lu Pa", (unsigned long)data.pressure_pa); oled_string(0, 32, line);
snprintf(line, sizeof(line), "H: %lu.%lu %%", (unsigned long)(data.humidity_q10 / 10), (unsigned long)(data.humidity_q10 % 10)); oled_string(0, 48, line);
oled_update(); xSemaphoreGive(spi_mutex); } } else { /* Timeout: no data for 1 second */ if (xSemaphoreTake(spi_mutex, pdMS_TO_TICKS(100)) == pdTRUE) { oled_clear(); oled_string(0, 24, "No sensor data!"); oled_update(); xSemaphoreGive(spi_mutex); } } }}void logger_task(void *params) { (void)params;
sensor_data_t data; char buf[128]; uint32_t sample_count = 0;
for (;;) { /* Peek at queue (do not remove, display task also reads) */ if (xQueuePeek(sensor_queue, &data, pdMS_TO_TICKS(2000)) == pdTRUE) { sample_count++; int len = snprintf(buf, sizeof(buf), "[%06lu] T=%ld.%02ldC P=%luPa H=%lu.%lu%%\r\n", (unsigned long)sample_count, (long)(data.temperature_c100 / 100), (long)(data.temperature_c100 % 100), (unsigned long)data.pressure_pa, (unsigned long)(data.humidity_q10 / 10), (unsigned long)(data.humidity_q10 % 10));
uart_dma_send(buf, len); }
vTaskDelay(pdMS_TO_TICKS(1000)); /* Log once per second */ }}void vApplicationIdleHook(void) { __WFI(); /* Enter sleep until next interrupt */}
void vApplicationMallocFailedHook(void) { /* Heap exhausted: halt for debugger */ __disable_irq(); while (1);}
void vApplicationStackOverflowHook(TaskHandle_t task, char *name) { (void)task; (void)name; /* Stack overflow detected: halt for debugger */ __disable_irq(); while (1);}int main(void) { clock_init(); uart_init(); uart_dma_tx_init(); i2c1_init(); spi1_init();
rtos_init(); /* Create queues and mutexes */
xTaskCreate(sensor_task, "Sensor", 256, NULL, 3, NULL); xTaskCreate(display_task, "Display", 256, NULL, 2, NULL); xTaskCreate(logger_task, "Logger", 256, NULL, 1, NULL);
uart_send_string("Starting FreeRTOS scheduler...\r\n");
/* Start the scheduler (never returns) */ vTaskStartScheduler();
/* Should never reach here */ while (1);}The following diagram shows how priority inversion happens and how mutex priority inheritance solves it.
Without priority inheritance:
P3 Sensor: [run]....blocked on mutex.... P2 Display: [runs, preempts Logger] P1 Logger: [holds mutex]..preempted.... Sensor starved!
With mutex priority inheritance:
P3 Sensor: [run]..blocked.. [run] P2 Display: ..wait.. P1->P3 Log: [holds mutex, boosted!] [P1] ^ ^ Logger inherits P3 mutex released, to finish quickly Logger returns to priority 1Priority inversion occurs when a high-priority task is blocked waiting for a resource held by a low-priority task, while a medium-priority task runs instead. The classic example: the sensor task (priority 3) tries to take the I2C mutex, but the logger task (priority 1) currently holds it. If the display task (priority 2) becomes ready, it preempts the logger, further delaying the mutex release and starving the sensor task.
FreeRTOS mutexes solve this with priority inheritance: when the sensor task (priority 3) blocks on the mutex, the logger task (priority 1) temporarily inherits priority 3, preempting the display task (priority 2) and releasing the mutex quickly.
This is why you should always use xSemaphoreCreateMutex() instead of xSemaphoreCreateBinary() when protecting shared resources.
# FreeRTOS-aware GDB commands (via OpenOCD)monitor freertos task-list
# Examine a specific task's stackprint *((TCB_t *)sensor_handle)
# Check free stack space (stack high water mark)print uxTaskGetStackHighWaterMark(sensor_handle)| Problem | Symptom | Fix |
|---|---|---|
| Stack overflow | Random crashes, corrupted data | Increase stack size, check with watermark |
| Heap exhaustion | Malloc failed hook fires | Increase configTOTAL_HEAP_SIZE |
| Priority inversion | High-priority task starved | Use mutexes (not binary semaphores) |
| Deadlock | Two tasks blocked forever | Always acquire mutexes in the same order |
| Queue overflow | Data lost | Increase queue depth or reduce send rate |
Lesson 8 Complete
RTOS fundamentals:
Inter-task communication:
Practical multitasking:
Debugging RTOS applications:
