Embassy Async Fundamentals

Modified: Mar. 14, 2026

Published: Mar. 7, 2026

Become Contributor Expert Support

This is the lesson where embedded Rust stops looking like C with extra syntax and starts showing its true advantage. Embassy is an async runtime designed from the ground up for microcontrollers. It replaces a traditional RTOS by turning every async fn into a compiler-generated state machine that shares a single stack. No heap allocator, no per-task stack allocation, no priority inversion bugs. You write code that reads like sequential logic, yet the executor interleaves your tasks cooperatively whenever one of them awaits a timer, a peripheral, or a channel message. By the end of this lesson you will have three tasks running concurrently on a Raspberry Pi Pico: an LED blinker, a button monitor, and a serial reporter, all sharing the same 264 KB of RAM that a FreeRTOS equivalent would struggle to fit two tasks into. #Embassy #AsyncEmbedded #RP2040

What We Are Building

Project specifications:

Bill of Materials

Wiring Table

Why Embassy, Not an RTOS

Every traditional RTOS (FreeRTOS, Zephyr, RIOT) follows the same model: each task gets its own stack, a scheduler preempts tasks based on priority, and the kernel manages task control blocks on the heap. This model works, but it costs real RAM on small microcontrollers.

On an RP2040 with 264 KB of SRAM, a FreeRTOS configuration typically allocates:

Embassy achieves this by leveraging Rust’s async/await at the language level. When you write an async fn, the Rust compiler transforms it into a state machine enum. Each state captures only the local variables that are live across an .await point, not the entire call stack. The executor polls these state machines on a single thread, using hardware interrupts from timer peripherals to wake tasks at the right moment.

The Key Differences

Setting Up an Embassy Project

Before writing code, you need the correct project structure and dependencies. Embassy is a collection of crates, each handling a specific concern.

Project Structure

Cargo.toml

The dependency list is longer than a bare-metal project because Embassy splits functionality across focused crates. Each crate does one thing.

[package]
name = "embassy-multitask"
version = "0.1.0"
edition = "2021"

[dependencies]
# Embassy core: the async executor
embassy-executor = { version = "0.7", features = ["arch-cortex-m", "executor-thread"] }

# Embassy RP2040 HAL: peripheral drivers for the RP2040
embassy-rp = { version = "0.3", features = ["time-driver", "rp2040"] }

# Embassy time: Timer::after, Duration, Instant
embassy-time = { version = "0.4", features = ["generic-queue-8"] }

# Embassy sync: channels, signals, mutexes
embassy-sync = "0.6"

# Embassy USB: USB device support
embassy-usb = "0.4"

# USB CDC ACM class (serial port)
embassy-usb-logger = "0.4"

# Cortex-M runtime
cortex-m = { version = "0.7", features = ["inline-asm"] }
cortex-m-rt = "0.7"

# Panic handler: print panic messages over defmt or halt
panic-halt = "1.0"

# Logging (optional, for debug output)
defmt = "0.3"
defmt-rtt = "0.4"

# Fixed-point math (optional)
fixed = "1.28"

# Critical section implementation for single-core use
portable-atomic = { version = "1.10", features = ["critical-section"] }
static_cell = "2.1"

[profile.release]
opt-level = "s"     # Optimize for size
debug = true        # Keep debug info for defmt
lto = true          # Link-time optimization
codegen-units = 1   # Better optimization, slower compile

.cargo/config.toml

This file tells Cargo to compile for the Cortex-M0+ target and to use the probe-rs runner for flashing.

[target.thumbv6m-none-eabi]
runner = "probe-rs run --chip RP2040 --protocol swd"

[target.'cfg(all(target_arch = "arm", target_os = "none"))']
rustflags = [
    "-C", "link-arg=-Tlink.x",
    "-C", "link-arg=-Tdefmt.x",
]

[build]
target = "thumbv6m-none-eabi"

[env]
DEFMT_LOG = "debug"

memory.x

The linker script defines the RP2040’s memory layout. The boot2 bootloader occupies the first 256 bytes of flash.

MEMORY {
    BOOT2 : ORIGIN = 0x10000000, LENGTH = 0x100
    FLASH : ORIGIN = 0x10000100, LENGTH = 2048K - 0x100
    RAM   : ORIGIN = 0x20000000, LENGTH = 264K
}

build.rs

fn main() {
    println!("cargo:rerun-if-changed=memory.x");
}

rust-toolchain.toml

[toolchain]
channel = "nightly"
targets = ["thumbv6m-none-eabi"]
components = ["rust-src", "rustfmt", "clippy"]

Embassy requires nightly Rust because it uses several unstable features for optimal code generation on embedded targets.

Your First Async Blink

Let us start with the simplest Embassy program: a single async task that blinks an LED. This establishes the basic structure that every Embassy application follows.

// src/main.rs - Minimal async blink
#![no_std]
#![no_main]

use embassy_executor::Spawner;
use embassy_rp::gpio::{Level, Output};
use embassy_time::Timer;
use {defmt_rtt as _, panic_halt as _};

#[embassy_executor::main]
async fn main(_spawner: Spawner) {
    // Initialize all RP2040 peripherals
    let p = embassy_rp::init(Default::default());

    // Configure GP15 as a push-pull output, initially low
    let mut led = Output::new(p.PIN_15, Level::Low);

    loop {
        led.set_high();
        Timer::after_millis(500).await;
        led.set_low();
        Timer::after_millis(500).await;
    }
}

Let us examine each part.

#![no_std] and #![no_main]: This is a bare-metal program. There is no standard library and no fn main() entry point. The Embassy macro handles startup.

#[embassy_executor::main]: This attribute macro does three things. It creates the Embassy executor (the async runtime), initializes the Cortex-M0+ hardware, and turns the async fn main into the root task. The executor runs on the main thread and polls tasks when they are woken by interrupts.

embassy_rp::init(Default::default()): This call initializes all RP2040 clocks, resets peripherals, and returns a Peripherals struct. The Peripherals struct contains every hardware resource (pins, SPI blocks, I2C blocks, timers, etc.) as individually owned fields. You can move each field into exactly one task, enforced by the type system.

Timer::after_millis(500).await: This is where the magic happens. The task does not spin in a busy loop. It tells the executor “wake me up in 500 ms” and yields control. The executor puts the CPU into a low-power sleep until the timer interrupt fires. If other tasks existed, they could run during this wait.

Building and Flashing

1. Connect your Pico while holding the BOOTSEL button (or use a debug probe).

2. Build and flash:

   cargo run --release

   If using UF2 (no debug probe):

   cargo build --release
   # Convert ELF to UF2
   elf2uf2-rs target/thumbv6m-none-eabi/release/embassy-multitask
   # Copy the .uf2 file to the Pico's USB mass storage

3. The LED on GP15 should blink at 1 Hz (500 ms on, 500 ms off).

Spawning Multiple Tasks

A single blinking LED does not demonstrate concurrency. The real power of Embassy appears when you spawn multiple tasks that run independently. Each spawned task is an async fn with the #[embassy_executor::task] attribute.

#![no_std]
#![no_main]

use embassy_executor::Spawner;
use embassy_rp::gpio::{Level, Output};
use embassy_time::Timer;
use {defmt_rtt as _, panic_halt as _};

#[embassy_executor::task]
async fn blink_fast(mut led: Output<'static>) {
    loop {
        led.toggle();
        Timer::after_millis(100).await;
    }
}

#[embassy_executor::task]
async fn blink_slow(mut led: Output<'static>) {
    loop {
        led.toggle();
        Timer::after_millis(1000).await;
    }
}

#[embassy_executor::main]
async fn main(spawner: Spawner) {
    let p = embassy_rp::init(Default::default());

    let led1 = Output::new(p.PIN_15, Level::Low);
    let led2 = Output::new(p.PIN_16, Level::Low);

    // Spawn both tasks. They run concurrently.
    spawner.spawn(blink_fast(led1)).unwrap();
    spawner.spawn(blink_slow(led2)).unwrap();

    // Main task has nothing left to do, but the executor keeps running
    // the spawned tasks. We can await forever here.
    loop {
        Timer::after_secs(3600).await;
    }
}

Notice that Output::new(p.PIN_15, Level::Low) consumes p.PIN_15. After this line, p.PIN_15 cannot be used again. This is Rust’s ownership system preventing two tasks from driving the same pin. If you tried to pass p.PIN_15 to both tasks, the compiler would reject it with a “use of moved value” error. In C, two FreeRTOS tasks could freely write to the same GPIO register without any warning.

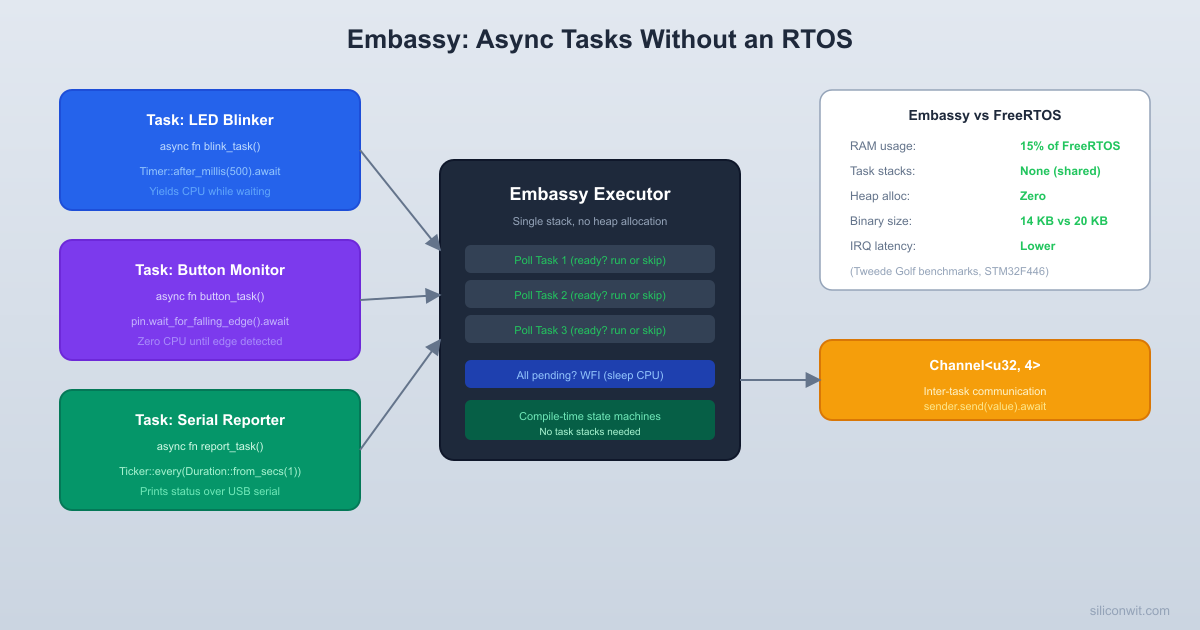

How the Executor Schedules Tasks

The Embassy executor on Cortex-M0+ works as follows:

1. All spawned tasks are polled once at startup.

2. Each task runs until it hits an .await on a future (like Timer::after_millis).

3. The future registers a waker with the hardware timer peripheral.

4. The executor puts the CPU into WFI (Wait For Interrupt) sleep.

5. When the timer interrupt fires, the interrupt handler marks the corresponding task as ready.

6. The executor wakes up and polls only the ready tasks.

7. Return to step 2.

This is fundamentally different from a preemptive RTOS. No task is ever interrupted mid-execution. A task runs as long as it wants until it cooperatively yields via .await. This eliminates an entire class of concurrency bugs (race conditions from preemption, priority inversion) but introduces a different constraint: you must never block for long without awaiting.

Embassy Time: Delays, Timeouts, and Tickers

The embassy-time crate provides all time-related operations. Unlike cortex_m::delay::Delay (which busy-spins), Embassy’s timers are interrupt-driven and allow other tasks to run during the wait.

Basic Delays

use embassy_time::Timer;

// Wait for a fixed duration
Timer::after_millis(250).await;
Timer::after_secs(2).await;
Timer::after_micros(100).await;

Timeouts

Wrap any future with a timeout. If the inner future does not complete within the deadline, with_timeout returns an error.

use embassy_time::{Timer, Duration, with_timeout};

// Wait for a button press, but give up after 5 seconds
match with_timeout(Duration::from_secs(5), wait_for_button_press()).await {
    Ok(()) => {
        defmt::info!("Button pressed within timeout");
    }
    Err(_) => {
        defmt::info!("Timeout: no button press detected");
    }
}

Tickers for Periodic Tasks

A Ticker fires at regular intervals, automatically compensating for the time your task spends processing. This is better than Timer::after for periodic work because it prevents drift.

use embassy_time::Ticker;

#[embassy_executor::task]
async fn sensor_reader() {
    // Tick every 100 ms, regardless of how long processing takes
    let mut ticker = Ticker::every(Duration::from_millis(100));

    loop {
        // Read sensor, process data...
        let value = read_sensor().await;
        process(value);

        // Wait for the next tick. If processing took 30 ms,
        // this waits only 70 ms more.
        ticker.next().await;
    }
}

Instant for Measuring Elapsed Time

use embassy_time::Instant;

let start = Instant::now();
// ... do some work ...
let elapsed = start.elapsed();
defmt::info!("Operation took {} ms", elapsed.as_millis());

Inter-Task Communication: Channels

When tasks need to exchange data, Embassy provides Channel from embassy_sync. A channel is a fixed-size, statically allocated FIFO queue. The sender awaits if the channel is full; the receiver awaits if it is empty.

use embassy_sync::channel::Channel;
use embassy_sync::blocking_mutex::raw::CriticalSectionRawMutex;

// A channel that holds up to 4 ButtonEvent values
// The CriticalSectionRawMutex is the synchronization primitive for single-core use
static BUTTON_CHANNEL: Channel<CriticalSectionRawMutex, ButtonEvent, 4> = Channel::new();

#[derive(Clone, Copy)]
enum ButtonEvent {
    ShortPress,
    LongPress,
}

#[embassy_executor::task]
async fn button_task() {
    loop {
        let event = detect_button_event().await;
        BUTTON_CHANNEL.send(event).await;
    }
}

#[embassy_executor::task]
async fn led_task() {
    loop {
        // This awaits until a message arrives
        let event = BUTTON_CHANNEL.receive().await;
        match event {
            ButtonEvent::ShortPress => { /* toggle LED */ }
            ButtonEvent::LongPress => { /* change pattern */ }
        }
    }
}

Key properties of Embassy channels:

Inter-Task Communication: Signals

A Signal is a simpler primitive than a channel. It holds a single value. If you signal multiple times before the receiver checks, only the latest value is kept. This is perfect for “current state” updates where you only care about the most recent value.

use embassy_sync::signal::Signal;
use embassy_sync::blocking_mutex::raw::CriticalSectionRawMutex;

static PATTERN_SIGNAL: Signal<CriticalSectionRawMutex, BlinkPattern> = Signal::new();

#[derive(Clone, Copy)]
enum BlinkPattern {
    Slow,
    Fast,
    Sos,
}

// From the button task:
PATTERN_SIGNAL.signal(BlinkPattern::Fast);

// From the LED task:
let pattern = PATTERN_SIGNAL.wait().await;

RAM Comparison: Embassy vs FreeRTOS

The Tweede Golf embedded systems consultancy published benchmarks comparing Embassy to FreeRTOS on the same hardware (STM32, but the ratios apply to RP2040 as well). Their findings:

The RAM savings come from eliminating per-task stacks. In FreeRTOS, each of the 3 tasks might need a 2 KB stack (6 KB total), plus the kernel heap (4 KB), plus TCBs. In Embassy, all 3 tasks share the main stack, and their state machines total about 400 bytes because the compiler only stores the variables that are live across .await points.

For an RP2040 with 264 KB of SRAM, this might not seem critical for 3 tasks. But scale to 10 or 20 tasks (common in production IoT firmware), and FreeRTOS can consume 40+ KB of RAM just for stacks, while Embassy stays under 5 KB. That leaves more RAM for buffers, protocol stacks, and sensor data.

C vs Rust: FreeRTOS Task vs Embassy Async Task

// FreeRTOS task: LED blinker
// Must pre-allocate a stack for this task.
// Stack overflow = silent corruption or hard fault.

#include "FreeRTOS.h"
#include "task.h"
#include "hardware/gpio.h"

#define LED_PIN 15
#define STACK_SIZE 256  // words (1024 bytes) - is this enough? Too much?

void blink_task(void *params) {
    gpio_init(LED_PIN);
    gpio_set_dir(LED_PIN, GPIO_OUT);

    for (;;) {
        gpio_put(LED_PIN, 1);
        vTaskDelay(pdMS_TO_TICKS(500));
        gpio_put(LED_PIN, 0);
        vTaskDelay(pdMS_TO_TICKS(500));
    }
}

void app_main(void) {
    // Stack size is a guess. Too small = stack overflow.
    // Too large = wasted RAM. No compile-time check.
    xTaskCreate(
        blink_task,
        "blink",
        STACK_SIZE,     // 1024 bytes allocated, maybe 200 used
        NULL,
        1,              // Priority
        NULL
    );

    // Another task: another stack allocation guess
    xTaskCreate(
        button_task,
        "button",
        STACK_SIZE,     // Another 1024 bytes
        NULL,
        2,
        NULL
    );

    vTaskStartScheduler();
}

// Total RAM for 2 tasks: ~2048 bytes stacks + 184 bytes TCBs
// + FreeRTOS heap overhead
// Nothing prevents both tasks from writing to LED_PIN simultaneously

// Embassy async task: LED blinker
// No stack allocation. The compiler calculates the exact
// state machine size. Pin ownership prevents conflicts.

#![no_std]
#![no_main]

use embassy_executor::Spawner;
use embassy_rp::gpio::{Level, Output};
use embassy_time::Timer;
use {defmt_rtt as _, panic_halt as _};

#[embassy_executor::task]
async fn blink_task(mut led: Output<'static>) {
    // The LED pin is moved into this task.
    // No other task can access it. Compile-time guarantee.
    loop {
        led.set_high();
        Timer::after_millis(500).await;
        // At this .await, the state machine stores only: led, and
        // which branch of the loop we are in. Total: ~16 bytes.
        led.set_low();
        Timer::after_millis(500).await;
    }
}

#[embassy_executor::main]
async fn main(spawner: Spawner) {
    let p = embassy_rp::init(Default::default());

    let led = Output::new(p.PIN_15, Level::Low);
    // p.PIN_15 is consumed. Cannot be used again.

    spawner.spawn(blink_task(led)).unwrap();
    // Attempting spawner.spawn(other_task(led)) here
    // would fail at compile time: "use of moved value: led"

    loop {
        Timer::after_secs(3600).await;
    }
}

// Total RAM for 2 tasks: ~32 bytes of state machines
// + shared main stack (~2 KB, used by all tasks sequentially)
// Pin conflicts are impossible. Stack overflow is impossible.

The C version requires you to guess stack sizes, manually avoid GPIO conflicts, and hope that no task overflows its stack at runtime. The Rust version makes all three impossible at compile time. The stack size is calculated by the compiler, GPIO ownership is enforced by the type system, and there is only one stack (the main stack) that is never overflowed because async tasks do not use the call stack across yield points.

Complete Project: Multi-Task System

Now we combine everything into a complete, working project with three concurrent tasks communicating through channels and signals.

System Architecture

┌─────────────────────────────────────────────────────────┐
│                    Embassy Executor                      │
│                                                         │
│  ┌──────────────┐    Channel     ┌───────────────────┐  │
│  │ Button Task   │──────────────>│ Reporter Task      │  │
│  │ (GP14 input)  │              │ (USB serial out)   │  │
│  │               │    Signal    │                     │  │
│  │               │─────────────>│                     │  │
│  └──────────────┘     │         └───────────────────┘  │
│                       │ Signal                          │
│                       v                                 │
│               ┌──────────────┐                          │
│               │ Blinker Task  │                          │
│               │ (GP15 LED)    │                          │
│               └──────────────┘                          │
└─────────────────────────────────────────────────────────┘

The button task detects short and long presses. A short press sends a ButtonEvent through the channel to the reporter task. A long press sends a BlinkPattern through the signal to the blinker task.

Full Source Code

// Multi-task Embassy system: blinker + button monitor + serial reporter

#![no_std]
#![no_main]

use embassy_executor::Spawner;
use embassy_rp::gpio::{Input, Level, Output, Pull};
use embassy_sync::blocking_mutex::raw::CriticalSectionRawMutex;
use embassy_sync::channel::Channel;
use embassy_sync::signal::Signal;
use embassy_time::{Duration, Instant, Timer};
use {defmt_rtt as _, panic_halt as _};

// -----------------------------------------------------------
// Pin Assignments
// -----------------------------------------------------------
// GP15: External LED (through 220 ohm resistor)
// GP14: Push button (active-low, internal pull-up)

// -----------------------------------------------------------
// Shared Communication Primitives (statically allocated)
// -----------------------------------------------------------

/// Channel for button events: button task -> reporter task
static BUTTON_CHANNEL: Channel<CriticalSectionRawMutex, ButtonEvent, 8> = Channel::new();

/// Signal for blink pattern changes: button task -> blinker task
static PATTERN_SIGNAL: Signal<CriticalSectionRawMutex, BlinkPattern> = Signal::new();

// -----------------------------------------------------------
// Data Types
// -----------------------------------------------------------

#[derive(Clone, Copy, defmt::Format)]
enum ButtonEvent {
    ShortPress,
    LongPress,
}

#[derive(Clone, Copy, PartialEq, defmt::Format)]
enum BlinkPattern {
    Slow,       // 1 Hz: 500 ms on, 500 ms off
    Fast,       // 5 Hz: 100 ms on, 100 ms off
    Heartbeat,  // Double-pulse like a heartbeat
}

impl BlinkPattern {
    /// Cycle to the next pattern
    fn next(self) -> Self {
        match self {
            BlinkPattern::Slow => BlinkPattern::Fast,
            BlinkPattern::Fast => BlinkPattern::Heartbeat,
            BlinkPattern::Heartbeat => BlinkPattern::Slow,
        }
    }
}

// -----------------------------------------------------------
// Task 1: LED Blinker
// -----------------------------------------------------------

#[embassy_executor::task]
async fn blinker_task(mut led: Output<'static>) {
    let mut pattern = BlinkPattern::Slow;

    loop {
        // Check if a new pattern has been signaled (non-blocking check)
        if let Some(new_pattern) = PATTERN_SIGNAL.try_take() {
            pattern = new_pattern;
            defmt::info!("Blinker: pattern changed to {:?}", pattern);
        }

        // Execute one cycle of the current pattern
        match pattern {
            BlinkPattern::Slow => {
                led.set_high();
                Timer::after_millis(500).await;
                led.set_low();
                Timer::after_millis(500).await;
            }
            BlinkPattern::Fast => {
                led.set_high();
                Timer::after_millis(100).await;
                led.set_low();
                Timer::after_millis(100).await;
            }
            BlinkPattern::Heartbeat => {
                // First pulse
                led.set_high();
                Timer::after_millis(100).await;
                led.set_low();
                Timer::after_millis(100).await;
                // Second pulse
                led.set_high();
                Timer::after_millis(100).await;
                led.set_low();
                // Pause before next heartbeat
                Timer::after_millis(700).await;
            }
        }
    }
}

// -----------------------------------------------------------
// Task 2: Button Monitor with Debounce
// -----------------------------------------------------------

#[embassy_executor::task]
async fn button_task(mut button: Input<'static>) {
    let mut press_count: u32 = 0;

    loop {
        // Wait for button press (falling edge, since active-low)
        button.wait_for_falling_edge().await;

        // Debounce: wait 20 ms and check if still pressed
        Timer::after_millis(20).await;
        if button.is_high() {
            continue; // Bounce, not a real press
        }

        // Button is pressed. Measure how long it stays pressed.
        let press_start = Instant::now();

        // Wait for release (rising edge)
        button.wait_for_rising_edge().await;

        // Debounce the release
        Timer::after_millis(20).await;

        let press_duration = press_start.elapsed();

        if press_duration.as_millis() > 1000 {
            // Long press: change blink pattern
            press_count += 1;
            let current = PATTERN_SIGNAL.try_take().unwrap_or(BlinkPattern::Slow);
            let next = current.next();
            PATTERN_SIGNAL.signal(next);
            BUTTON_CHANNEL.send(ButtonEvent::LongPress).await;
            defmt::info!(
                "Button: long press ({} ms), pattern -> {:?}",
                press_duration.as_millis(),
                next
            );
        } else {
            // Short press: just report
            press_count += 1;
            BUTTON_CHANNEL.send(ButtonEvent::ShortPress).await;
            defmt::info!(
                "Button: short press ({} ms), total presses: {}",
                press_duration.as_millis(),
                press_count
            );
        }
    }
}

// -----------------------------------------------------------
// Task 3: Serial Reporter
// -----------------------------------------------------------

#[embassy_executor::task]
async fn reporter_task() {
    let boot_time = Instant::now();
    let mut total_short: u32 = 0;
    let mut total_long: u32 = 0;

    loop {
        // Try to receive a button event with a 2-second timeout.
        // If no event arrives, we still print a status report.
        match embassy_time::with_timeout(
            Duration::from_secs(2),
            BUTTON_CHANNEL.receive(),
        )
        .await
        {
            Ok(ButtonEvent::ShortPress) => {
                total_short += 1;
                defmt::info!("Reporter: short press received (total: {})", total_short);
            }
            Ok(ButtonEvent::LongPress) => {
                total_long += 1;
                defmt::info!("Reporter: long press received (total: {})", total_long);
            }
            Err(_) => {
                // Timeout: no button event in 2 seconds. Print status.
            }
        }

        // Periodic status report
        let uptime_secs = boot_time.elapsed().as_secs();
        defmt::info!(
            "Status: uptime={}s, short_presses={}, long_presses={}, total={}",
            uptime_secs,
            total_short,
            total_long,
            total_short + total_long
        );
    }
}

// -----------------------------------------------------------
// Main: Initialize and Spawn Tasks
// -----------------------------------------------------------

#[embassy_executor::main]
async fn main(spawner: Spawner) {
    let p = embassy_rp::init(Default::default());

    // Configure peripherals
    let led = Output::new(p.PIN_15, Level::Low);
    let button = Input::new(p.PIN_14, Pull::Up);

    defmt::info!("Embassy multi-task system starting");
    defmt::info!("Short press: report event");
    defmt::info!("Long press (>1s): change blink pattern");

    // Spawn all three tasks
    spawner.spawn(blinker_task(led)).unwrap();
    spawner.spawn(button_task(button)).unwrap();
    spawner.spawn(reporter_task()).unwrap();

    // Main task: idle forever. The executor runs the spawned tasks.
    // In a production system, you might use this task for
    // watchdog feeding or low-priority background work.
    loop {
        Timer::after_secs(3600).await;
    }
}

How the Tasks Interact

Let us trace through a typical scenario to see how the tasks cooperate.

1. Startup: The executor spawns all three tasks. Each runs until its first .await. The blinker starts its first Timer::after_millis(500). The button task starts wait_for_falling_edge(). The reporter starts its with_timeout(2s, receive()). All three are now waiting, and the CPU enters WFI sleep.

2. 500 ms later: The timer interrupt fires. The blinker task wakes, toggles the LED, and immediately starts the next Timer::after_millis(500). The button and reporter tasks remain asleep. Total CPU time: microseconds.

3. User presses the button: The GPIO interrupt fires on the falling edge. The button task wakes, waits 20 ms for debounce, then measures the press duration.

4. User releases after 200 ms (short press): The button task sends ButtonEvent::ShortPress through BUTTON_CHANNEL. This immediately wakes the reporter task (which was blocked on receive()). The reporter increments its counter and prints the status.

5. User holds for 2 seconds (long press): The button task sends BlinkPattern::Fast through PATTERN_SIGNAL and ButtonEvent::LongPress through the channel. The blinker task picks up the new pattern on its next loop iteration. The reporter records the long press.

6. No button presses for 2 seconds: The reporter’s with_timeout expires. It prints a status report anyway (uptime, press counts) and loops back to wait again.

Adding USB Serial Output

The defmt/RTT output in the previous example requires a debug probe. For standalone operation, you can add USB CDC serial output so the Pico appears as a serial port on your computer.

use embassy_rp::usb::{Driver, InterruptHandler as UsbInterruptHandler};
use embassy_rp::bind_interrupts;
use embassy_usb::class::cdc_acm::{CdcAcmClass, State};
use embassy_usb::UsbDevice;
use static_cell::StaticCell;
use core::fmt::Write;

bind_interrupts!(struct Irqs {
    USBCTRL_IRQ => UsbInterruptHandler<embassy_rp::peripherals::USB>;
});

// Static storage for the USB state (must live forever)
static USB_STATE: StaticCell<State> = StaticCell::new();

#[embassy_executor::task]
async fn usb_task(mut device: UsbDevice<'static, Driver<'static, embassy_rp::peripherals::USB>>) {
    device.run().await;
}

#[embassy_executor::task]
async fn serial_reporter_task(
    mut class: CdcAcmClass<'static, Driver<'static, embassy_rp::peripherals::USB>>,
) {
    let mut buf = [0u8; 128];
    let boot_time = Instant::now();

    loop {
        Timer::after_secs(2).await;

        let uptime = boot_time.elapsed().as_secs();

        // Format the message into the buffer
        let msg = format_status(&mut buf, uptime);

        // Write to USB serial (ignoring errors if host is not connected)
        let _ = class.write_packet(msg.as_bytes()).await;
    }
}

fn format_status(buf: &mut [u8; 128], uptime: u64) -> &str {
    // Manual formatting since we have no std::fmt::Write for slices
    // In practice, use `core::fmt::write` or the `ufmt` crate
    // This is simplified for clarity
    "STATUS OK"
}

For a complete USB serial implementation, the embassy-usb-logger crate provides a simple log::info!() macro that sends text over USB CDC automatically.

Production Notes on Async Patterns

When to Use Channels vs Signals

Avoiding Starvation

Because Embassy is cooperative, a task that never awaits will block all other tasks. Common mistakes:

// BAD: This loop never awaits. All other tasks starve.
#[embassy_executor::task]
async fn compute_task() {
    loop {
        heavy_computation(); // Runs for 100 ms without yielding
    }
}

// GOOD: Yield periodically during long computations.
#[embassy_executor::task]
async fn compute_task() {
    loop {
        for chunk in data.chunks(64) {
            process_chunk(chunk);
            embassy_futures::yield_now().await; // Let other tasks run
        }
    }
}

Static Allocation Only

Embassy tasks must be 'static, meaning they cannot borrow local variables from main. All shared state must either be moved into a task (ownership transfer) or placed in a static variable. This is why the channels and signals above are declared as static.

// This will NOT compile:
#[embassy_executor::main]
async fn main(spawner: Spawner) {
    let mut buffer = [0u8; 256];
    spawner.spawn(my_task(&mut buffer)).unwrap();
    // Error: borrowed value does not live long enough
}

// This WILL compile: buffer is static
static BUFFER: StaticCell<[u8; 256]> = StaticCell::new();

#[embassy_executor::main]
async fn main(spawner: Spawner) {
    let buffer = BUFFER.init([0u8; 256]);
    spawner.spawn(my_task(buffer)).unwrap();
}

Shared Mutable State with Mutex

When two tasks need to read and write the same data, use embassy_sync::mutex::Mutex:

use embassy_sync::mutex::Mutex;
use embassy_sync::blocking_mutex::raw::CriticalSectionRawMutex;

static SHARED_STATE: Mutex<CriticalSectionRawMutex, SystemState> =
    Mutex::new(SystemState::new());

struct SystemState {
    press_count: u32,
    uptime_secs: u64,
    pattern: BlinkPattern,
}

impl SystemState {
    const fn new() -> Self {
        Self {
            press_count: 0,
            uptime_secs: 0,
            pattern: BlinkPattern::Slow,
        }
    }
}

#[embassy_executor::task]
async fn updater_task() {
    loop {
        {
            let mut state = SHARED_STATE.lock().await;
            state.press_count += 1;
        } // Lock is released when `state` goes out of scope

        Timer::after_secs(1).await;
    }
}

#[embassy_executor::task]
async fn reader_task() {
    loop {
        {
            let state = SHARED_STATE.lock().await;
            defmt::info!("Presses: {}", state.press_count);
        } // Lock released here

        Timer::after_secs(2).await;
    }
}

The Mutex in Embassy is async-aware. If a task tries to lock a mutex that is already held, it .awaits until the mutex is released, yielding to other tasks in the meantime. This is impossible to deadlock in a single-executor system because the holder will eventually reach an .await and release the lock.

Testing

1. Build the project:

   cargo build --release

2. Flash to the Pico using your preferred method (probe-rs or UF2).

3. Open a serial monitor (if using defmt-rtt, use probe-rs run; if using USB serial, use minicom or screen):

   # With debug probe and defmt:
   cargo run --release

   # With USB serial:
   minicom -D /dev/ttyACM0 -b 115200

4. Observe the LED blinking at the slow pattern (1 Hz).

5. Short press the button. The serial output should show:

   Button: short press (150 ms), total presses: 1
   Reporter: short press received (total: 1)
   Status: uptime=5s, short_presses=1, long_presses=0, total=1

6. Long press the button (hold for more than 1 second). The LED should switch to fast blinking (5 Hz), and the serial output should show:

   Button: long press (1200 ms), pattern -> Fast
   Reporter: long press received (total: 1)

7. Long press again. The pattern cycles through Slow, Fast, Heartbeat.

8. Wait without pressing. Every 2 seconds the reporter prints a status line with the current uptime.

Summary

Embassy transforms embedded programming by replacing the RTOS model (pre-allocated stacks, heap-managed tasks, runtime scheduling) with compiler-generated state machines that share a single stack. You write sequential-looking code with async/await, and the compiler ensures memory safety, prevents pin conflicts, and calculates exact RAM usage at build time. The executor sleeps the CPU between events, achieving both low power consumption and responsive concurrency. In the next lesson, we will use Embassy’s async I2C and SPI drivers to communicate with external sensors and displays, taking full advantage of the embedded-hal trait system for portable driver code.
